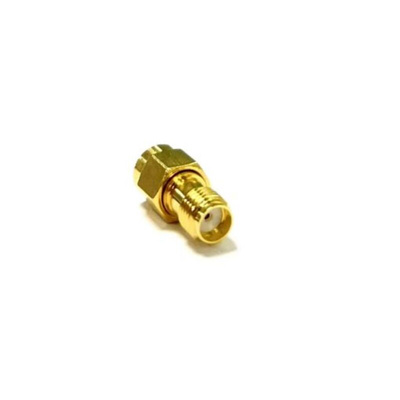

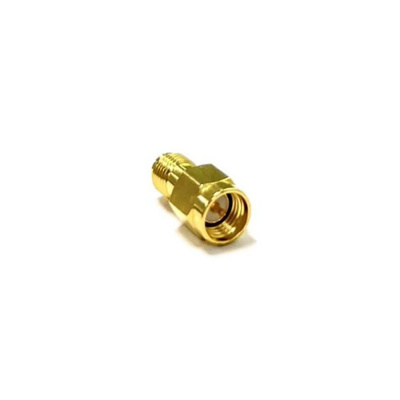

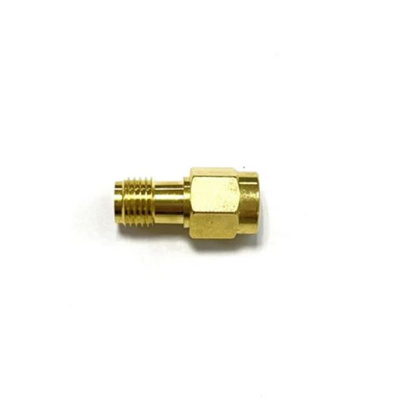

RS PRO Straight 50Ω Coaxial Adapter SMA Plug to SMA Socket 6GHz

RS PRO Straight SMA Coaxial Adapter, SMA Plug to SMA Socket, 6 GHz

The RS PRO straight SMA (sub miniature A) Female to SMA male coaxial adapter is designed for the efficient and secure connection of coaxial cable assemblies.

The RS PRO coaxial adapter is ideal for applications that require connections to be made and broken repeatedly protecting the connectors by shifting the force to the adaptor. Other applications can include repairs to devices, panel passthroughs and connection extensions.

The RS PRO coax adapter features PTFE insulation with gold-plated Copper contacts for excellent wear resistance and at only 17.2mm long this SMA adapter is ideal for hard to access or space restricted areas.

Coaxial adapters are suited to a wide range of industries and applications and are most commonly used in the radio and television industry, WiFi applications and equipment, GPS and antennas.

Features and benefits

• SMA Plug to SMA Socket


• Straight orientation


• 17.2mm


• Impedance of 50Ω


• Working Voltage of 335V


• Insulation resistance of up to 1000MΩ


• Operating temperature range of -45°C to +125°C

Features and benefits

Approvals and Standards: CE, ROHS

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
