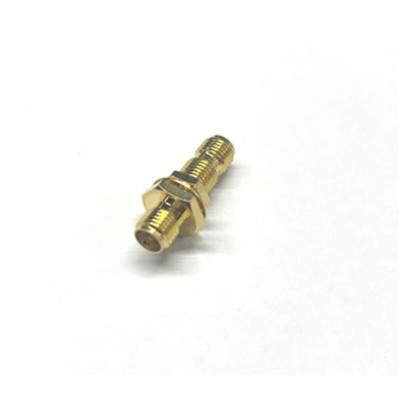

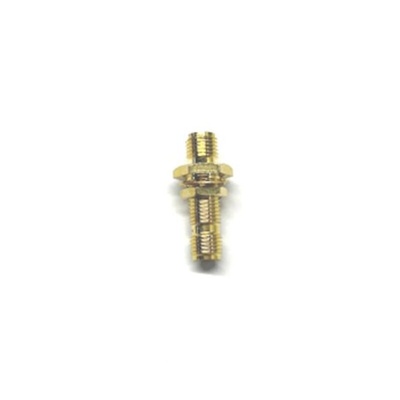

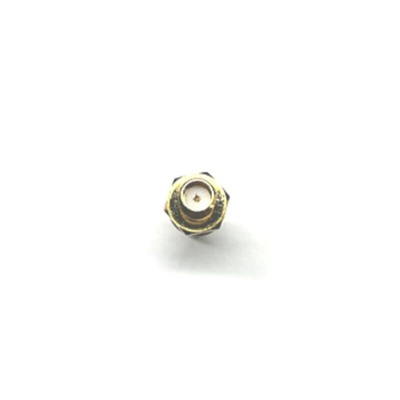

RS PRO Straight 50Ω Coaxial Adapter SMA Socket to SMA Socket 18GHz

RS PRO Straight SMA Coaxial Adapter, SMA Jack to SMA Jack, 18 GHz

The RS PRO straight SMA (sub miniature A) Female to SMA Female coaxial adapter is designed for connecting coaxial cable assemblies through a panel mounting connection.

The RS PRO coaxial adapter is ideal for applications that require connections to be made and broken repeatedly protecting the connectors by shifting the force to the adaptor. Other applications can include repairs to devices, panel passthroughs and connection extensions.

The RS PRO coax adapter features PTFE insulation with gold-plated contacts for excellent wear resistance and a total length of only 24mm.

Coaxial adapters are suited to a wide range of industries and applications and are most commonly used in the radio and television industry, WiFi applications and equipment, GPS and antennas.

Features and benefits

• SMA Jack to SMA Jack


• Straight orientation


• 24mm


• Impedance of 50Ω


• Working Voltage of 500V


• Insulation resistance of up to 1000MΩ


• Operating temperature range of -65°C to +165°C

Approvals and Standards: CE, ROHS
