RS PRO, jack Flange Mount SMA Connector, 50Ω, Solder Termination, Straight Body

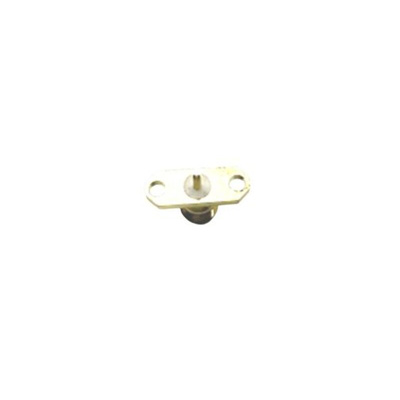

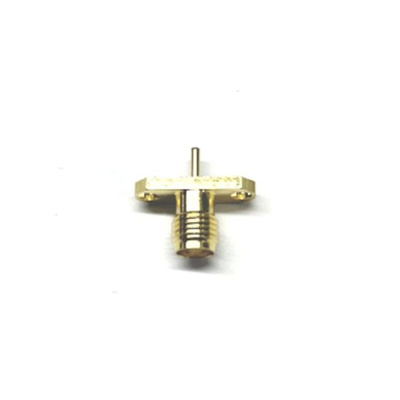

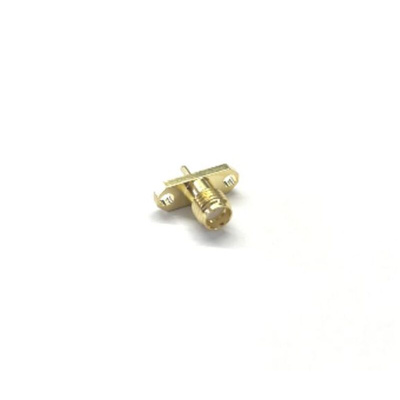

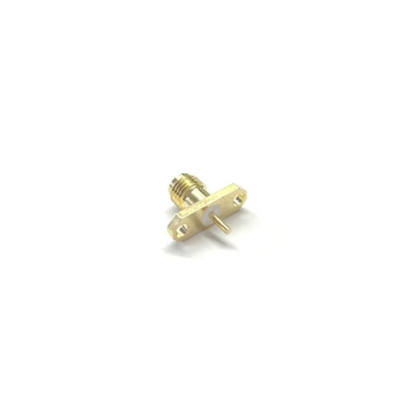

RS PRO Straight Angle Flange Mount Bulkhead SMA Connector Jack

A straight Flange mount SMA (subminiature version A) Bulkhead Jack designed to enable the smooth transmission of radio-frequency signals (RF).

The RS PRO Bulkhead SMA connector features an 18 GHz frequency range and is suitable for a large range of applications including WiFi equipment.

This subminiature coax connector jack also features gold-plated Brass contacts for maximum repeated efficiency, wear resistance and excellent conductivity.

To save installation time and effort the RS PRO SMA connector features snap-in/snap coupling mechanisms that allow you to quickly connect and disconnect cables.

Features and Benefits

• Sub-miniature size


• Flange mount


• Solder termination


• Working Voltage of 335V


• Insulation resistance of upto 1000MΩ


• Operating temperature range of -45°C to +165°C

Approvals and Standards: CE, ROHS
