RS PRO, jack PCB Mount SMA Connector, 50Ω, Solder Termination, Right Angle Body, Разъем

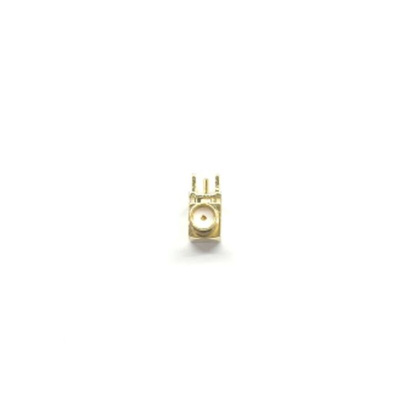

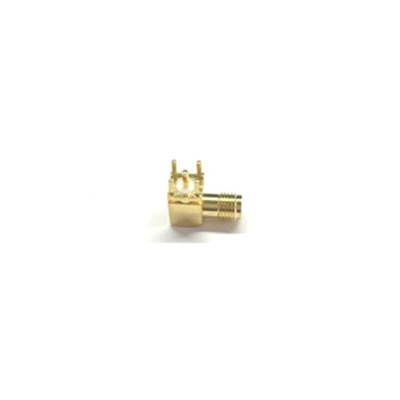

RS PRO Right Angle Flange PCB Mount SMA Connector Jack

A right angle mount SMA (subminiature version A) connector designed to enable the smooth transmission of radio-frequency signals (RF).

This RS PRO coaxial connector connects two cables together while providing electrical shielding and low electromagnetic interference (EMI).

Its right-angled body orientation allows you to install cables in corners and tight Spaces without the risk of damaging the cables.

The RS PRO PCB mount SMA connector features a 12.4 GHz frequency range and ideal for use with in WiFi equipment.

This subminiature connector also features gold-plated Brass contacts for maximum repeated efficiency, wear resistance and excellent conductivity.

Features and Benefits

• Sub-miniature size


• PCB mount


• Solder termination


• Working Voltage of 335V


• Insulation resistance of upto 1000MΩ


• Operating temperature range of -45°C to +165°C

Approvals and Standards: CE, ROHS

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
