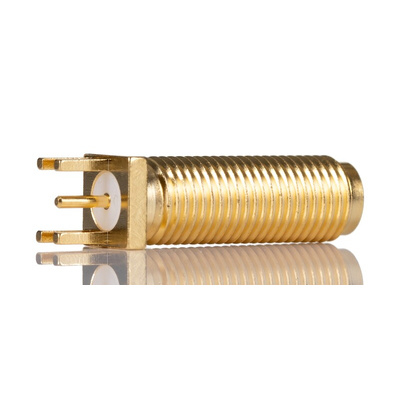

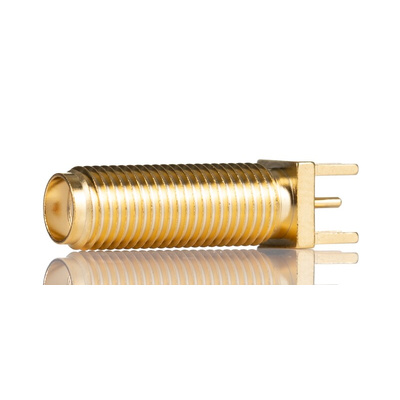

RS PRO, jack Panel Mount SMA Connector, 50Ω, Solder Termination, Straight Body

RS PRO Straight Angle Panel Mount SMA Bulkhead Connector Jack, IP68

A straight angle panel mount SMA (subminiature version A) Bulkhead connector jack designed for use with coaxial cable to enable the smooth transmission of radio-frequency signals (RF).

The RS PRO panel mount SMA connector features a 6 GHz frequency range and features silicone ’O’ rings with an IP rating of IP68 for protection against gas and moisture ingress and panel sealing between the connector body and panel mounting hole.

This subminiature coax connector also features PTFE insulation and gold-plated Phosphor Copper contacts for maximum repeated efficiency and excellent wear resistance.

Features and Benefits

• Sub-miniature size


• Bulkhead connector


• IP68 protection against water and dirt ingress


• Panel mount


• Solder termination


• Working Voltage of 335V


• Insulation resistance of upto 1000MΩ


• Operating temperature range of -45°C to +165°C

Approvals and Standards: CE, ROHS
