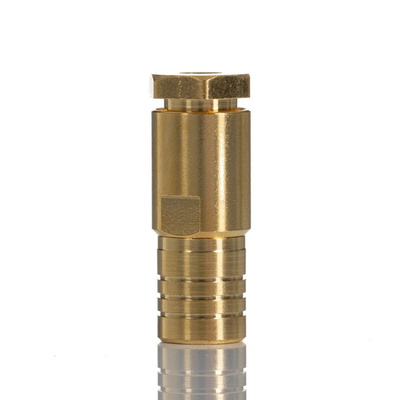

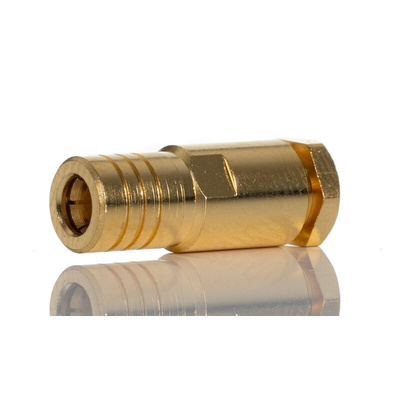

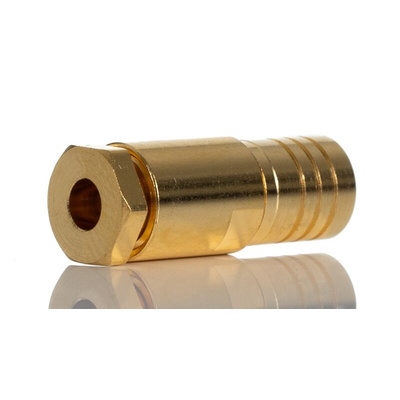

RS PRO, jack Cable Mount SMB Connector, 50Ω, Clamp Termination, Straight Body

RS PRO Straight Angle Cable Mount SMB Connector Jack, RG174 A/U

A straight angle cable mount SMB (subminiature version B) connector designed for use RG174A/U coaxial cable to enable the smooth transmission of radio-frequency signals (RF). The RS PRO SMB connector features an 4GHz frequency range and with its flange mount design with remain level on the PCB after soldering.

Sub miniature B connectors all feature a snap on coupling for quick and easy and quick connection and disconnection of coax cables.

The RS PRO SMB connector includes PTFE insulation and gold-plated Copper contacts for maximum repeated efficiency and excellent wear resistance.

Features and Benefits

• Sub-miniature size


• For use with RG174A/U coaxial cable


• Cable mount


• Clamp termination


• Working Voltage of 335V


• Insulation resistance of upto 1000MΩ


• Operating temperature range of -45°C to +125°C

Approvals and Standards: CE, ROHS
