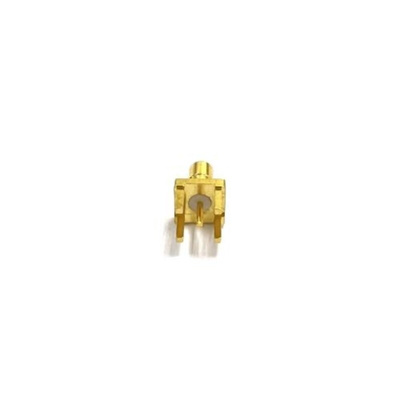

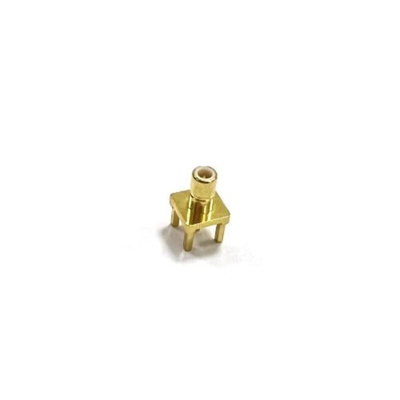

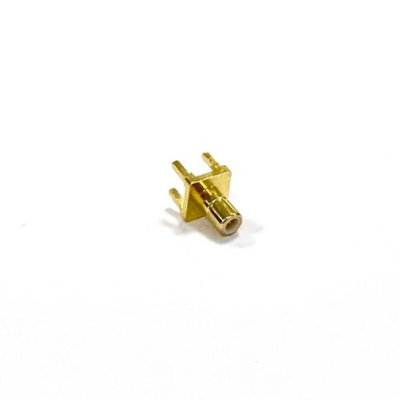

RS PRO, jack Panel Mount SMB Connector, 50Ω, Solder Termination, Straight Body

RS PRO Straight Angle Panel Mount SMB Connector Jack

A straight angle panel mount SMB (subminiature version B) connector designed for use RG174A/U coaxial cable to enable the smooth transmission of radio-frequency signals (RF).

Sub miniature B connectors all feature a snap on coupling for quick and easy and quick connection and disconnection of coax cables.

The RS PRO SMB connector features a 4 GHz frequency range and includes PTFE insulation and gold-plated Phosphor Copper contacts for maximum repeated efficiency and excellent wear resistance.

Typical applications include WiFi equipment and networks and microwave systems enabling you to transmit data, video, and voice traffic.

Features and Benefits

• Sub-miniature size


• Panel mount


• Solder termination


• Working Voltage of 335V


• Insulation resistance of upto 1000MΩ


• Operating temperature range of -45°C to +165°C

Approvals and Standards: CE, ROHS
