RS PRO, jack PCB Mount SMB Connector, 50Ω, Crimp Termination, Right Angle Body

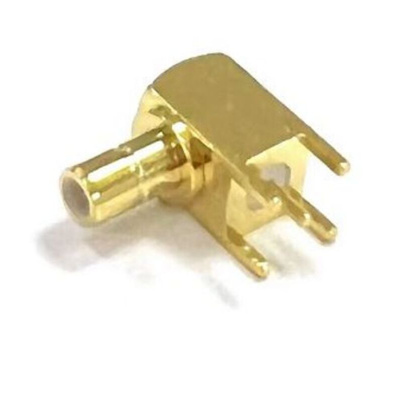

RS PRO Right Angle PCB Mount SMB Connector Plug

A right angle panel mount SMB (subminiature version B) connector designed for use with coaxial cable to enable the smooth transmission of radio-frequency signals (RF).

Sub miniature B connectors all feature a snap on coupling for quick and easy and quick connection and disconnection of coax cables and with the right angle design this SMB is ideally suited for installation in hard to access areas.

The RS PRO SMB connector features a 4 GHz frequency range and includes PTFE insulation and gold-plated Copper contacts for maximum repeated efficiency and excellent wear resistance.

Typical applications include WiFi equipment and networks.

Features and Benefits

• Sub-miniature size


• PCB mount


• Solder termination


• Working Voltage of 335V


• Insulation resistance of upto 1000MΩ


• Operating temperature range of -45°C to +165°C

Approvals and Standards: CE, ROHS
