RS PRO Tee 50Ω Coaxial Adapter N Socket to N Socket 11GHz

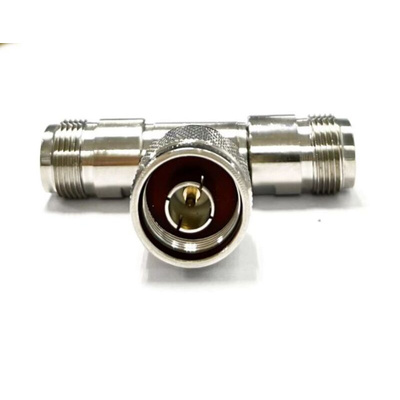

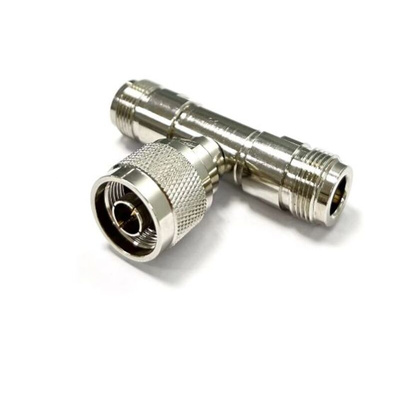

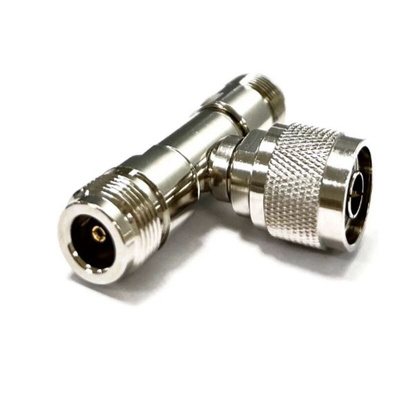

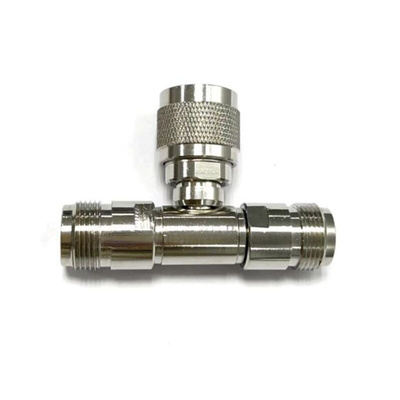

RS PRO Tee Angle N Plug to N Socket, 11 GHz

The RS PRO Tee angle N Female to N Female coaxial adapter is designed for the efficient and secure connection of coaxial cable assemblies.

The RS PRO coaxial adapter is ideal for applications that require connections to be made and broken repeatedly protecting the connectors by shifting the force to the adaptor. Other applications can include repairs to devices, panel passthroughs and connection extensions.

The RS PRO coax adapter features PTFE insulation with gold-plated Phosphor Copper contacts for excellent wear resistance and a length of 61.6mm.

N connectors are waterproof and threaded connectors designed to stop passive intermodulation distortion (PIM), a condition in which signals mix and block current. N Type connectors are commonly used in applications including TV and radio broadcast as well as antenna and WiFi systems, where the ability to transfer large amounts data quickly and reliably is paramount.

Features and benefits

• N Plug to N Socket


• Tee angle


• 61.6mm


• Impedance of 50Ω


• Working Voltage of 750V


• Operating temperature range of -40°C to +125°C

Approvals and Standards: CE, ROHS
