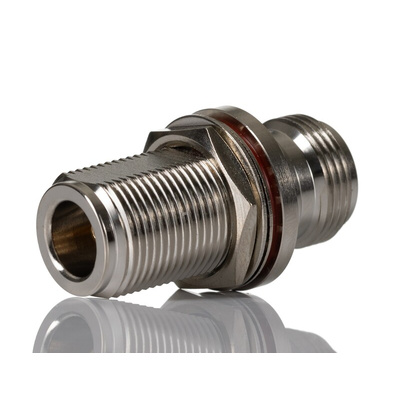

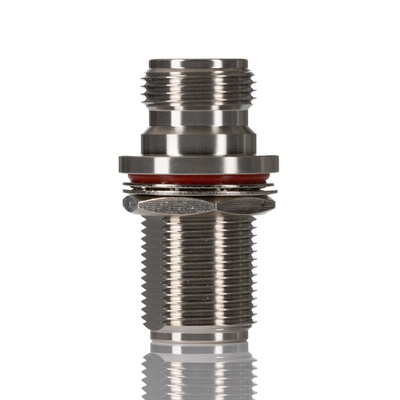

RS PRO Straight 50Ω Coaxial Adapter N Socket to N Socket 11GHz

RS PRO Straight Coaxial N Adapter, N Socket to N Socket, 11 GHz

The RS PRO straight N Female to N Female coaxial adapter is designed for the efficient and secure connection of coaxial cable assemblies through a panel mounting connection.

The RS PRO coaxial adapter is ideal for applications that require connections to be made and broken repeatedly protecting the connectors by shifting the force to the adaptor. Other applications can include repairs to devices, panel passthroughs and connection extensions.

The RS PRO coax adapter features gold-plated Brass contacts for excellent wear resistance and a length of 38mm.

N connectors are waterproof and threaded connectors designed to stop passive intermodulation distortion (PIM), a condition in which signals mix and block current. N Type connectors are commonly used in applications including TV and radio broadcast as well as antenna and WiFi systems, where the ability to transfer large amounts data quickly and reliably is paramount.

Features and benefits

• N Socket to N Socket


• Straight orientation


• 38mm


• Impedance of 50Ω


• Working Voltage of 500V


• Operating temperature range of -65°C to +165°C

Approvals and Standards: CE, ROHS

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
