RS PRO, Plug Cable Mount N Connector, 50Ω, Crimp Termination, Straight Body

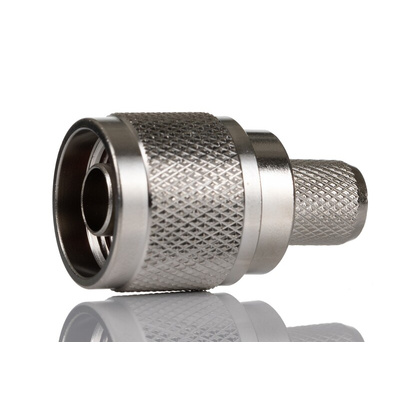

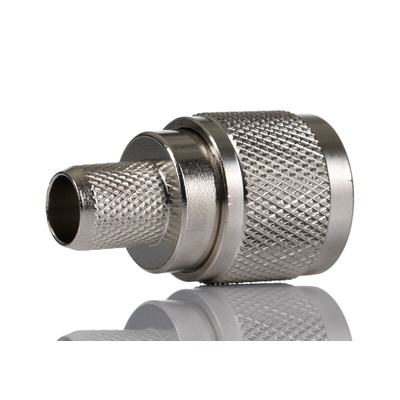

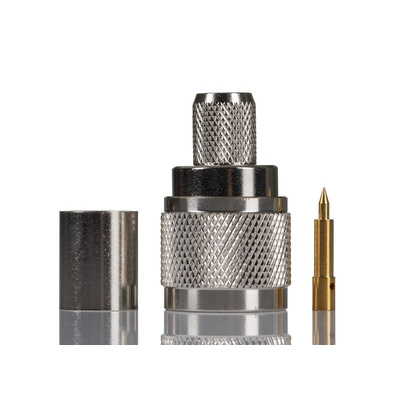

RS PRO Straight Angle Cable Mount N Connector Plug, RG213

A straight angle cable mount N connector designed for the joining of RG213 coaxial cable to enable the smooth transmission of radio-frequency signals (RF).

As an N connector the RS PRO N connector plug is waterproof and threaded and is designed to stop passive intermodulation distortion (PIM), a condition in which signals mix and block current making the connectors ideally suited to applications including TV and radio broadcast as well as antenna and WiFi systems, where the ability to transfer large amounts data quickly and reliably is paramount.

The RS PRO N coax connector features a 11 GHz frequency range and includes PTFE insulation and gold-plated Copper contacts for maximum repeated efficiency and excellent wear resistance.

Features and Benefits

• For use with RG213 coax cable


• Cable mount


• Crimp termination


• Working Voltage of 500V


• Insulation resistance of upto 1000MΩ


• Operating temperature range of -45°C to +125°C

Approvals and Standards: CE, ROHS
