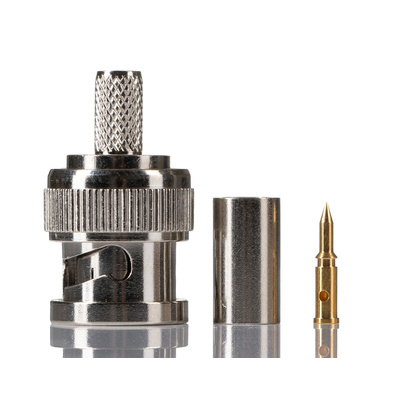

RS PRO Straight 50Ω Coaxial Adapter BNC Plug to BNC Plug 3GHz

RS PRO Straight Coaxial BNC Adapter, BNC Plug, 3 GHz

The RS PRO straight BNC Plug coaxial adapter is designed for the efficient and secure connection of coaxial cable assemblies and features a bayonet coupling for easy tool free connection and disconnection.

The RS PRO coaxial adapter is ideal for applications that require connections to be made and broken repeatedly protecting the connectors by shifting the force to the adaptor. Other applications can include repairs to devices, panel passthroughs and connection extensions.

The RS PRO coax adapter features PTFE insulation with gold-plated Copper contacts for excellent wear resistance and a length of 23.7mm.

Due to the ability to quickly connect or disconnect BNC adapters are ideal for a wide range of applications and are often used in test equipment, antenna connections, CCTV and medical equipment.

Features and benefits

• BNC Plug


• Straight orientation


• 34.5mm


• Impedance of 50Ω


• Working Voltage of 335V


• Insulation resistance of up to 1000MΩ


• Operating temperature range of -45°C to +85°C

Approvals and Standards: CE, ROHS

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
