RS PRO, jack PCB Mount BNC Connector, 75Ω, Through Hole Termination, Right Angle Body

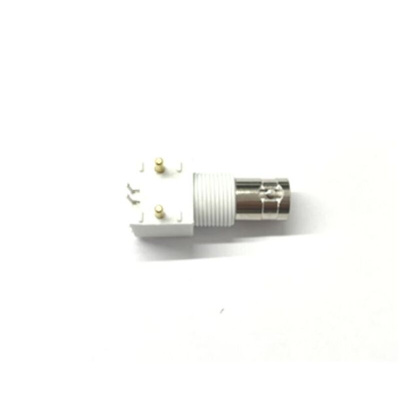

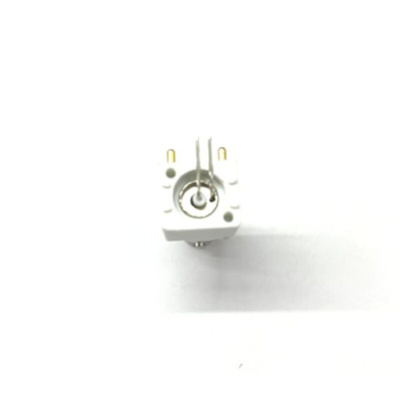

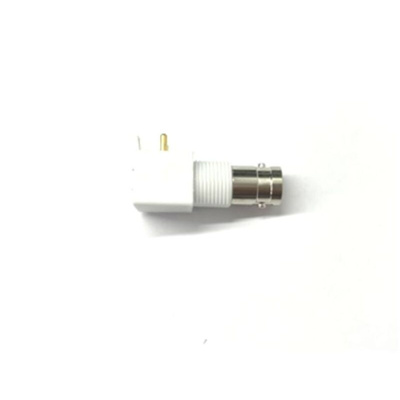

RS PRO Right Angle PCB Mount BNC Connector Jack

A right angle PCB mount BNC connector designed for use with coaxial cable to enable the smooth transmission of radio-frequency signals (RF). As a BNC connector the RS PRO BNC Connector jack features a quick connect bayonet fitting for easy tool free coax connection and disconnection.

The RS PRO BNC coax connector features a 1 GHz frequency range and includes PTFE insulation and gold-plated contacts for maximum repeated efficiency and excellent wear resistance.

Due to the ability to quickly connect or disconnect BNC coaxial connectors are ideal for a wide range of RF applications and are often used in test equipment, antenna connections, CCTV and medical equipment.

Features and Benefits

• PCB mount


• Through hole termination


• Right angle orientation


• Working Voltage of 250V


• Insulation resistance of upto 1000MΩ


• Operating temperature range of -35°C to +165°C

Approvals and Standards: CE, ROHS

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
