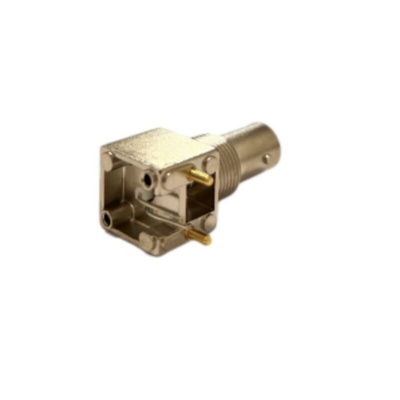

RS PRO, jack PCB Mount BNC Connector, 50Ω, Through Hole Termination, Straight Body

RS PRO Straight Angle PCB Mount Bulkhead BNC Connector Jack

A straight angle PCB mount BNC connector bulkhead designed for use with coaxial cable to enable the smooth transmission of radio-frequency signals (RF). As a BNC connector the RS PRO BNC Connector jack features a quick connect bayonet fitting for easy tool free coax connection and disconnection.

The RS PRO BNC coax connector features a 1 GHz frequency range and gold-plated Phosphor Copper contacts for maximum repeated efficiency and excellent wear resistance.

Due to the ability to quickly connect or disconnect from connectors BNC coaxial connectors are ideal for a wide range of RF applications and are often used in test equipment, antenna connections, CCTV and medical equipment.

Features and Benefits

• Bulkhead design


• PCB mount


• Through hole termination


• Straight orientation


• Working Voltage of 250V


• Operating temperature range of -40°C to +125°C

Approvals and Standards: CE, ROHS
