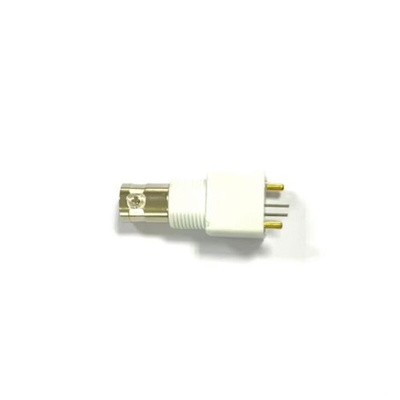

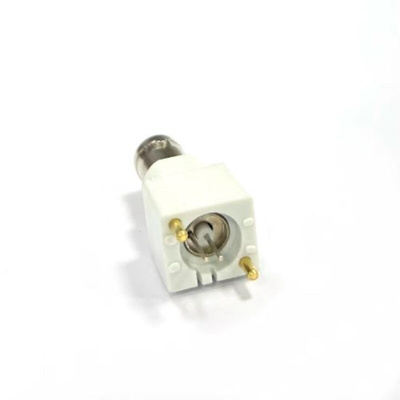

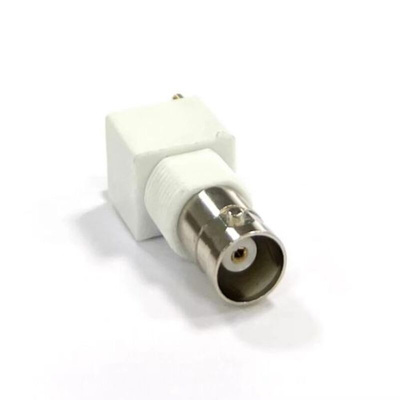

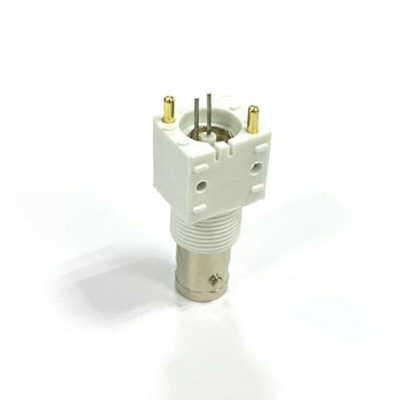

RS PRO, jack PCB Mount BNC Connector, 75Ω, Solder Termination, Straight Body

RS PRO Straight Angle PCB Mount BNC Connector Jack

A straight angled PCB mount BNC connector designed for use with coaxial cable to enable the smooth transmission of radio-frequency signals (RF).

As a BNC connector the RS PRO BNC Connector jack is designed to attach to the corresponding connector via a quick connect bayonet fitting for easy tool free coax connection and disconnection.

The RS PRO BNC coax connector features a thin 90° design for maximum space saving and a 1 GHz frequency range with PTFE insulation and gold-plated Copper contacts for maximum repeated efficiency and excellent wear resistance.

Due to the ability to quickly connect or disconnect BNC coaxial connectors are ideal for a wide range of RF applications and are often used in test equipment, antenna connections, CCTV and medical equipment.

Features and Benefits

• Nickel plated body for rust and wear resistance


• PCB mount


• Solder termination


• Straight orientation


• Working Voltage of 250V


• Insulation resistance of upto 1000MΩ


• Operating temperature range of -35°C to +165°C

Approvals and Standards: CE, ROHS
