RS PRO Straight 50Ω Coaxial Adapter BNC Socket to BNC Socket 4GHZ

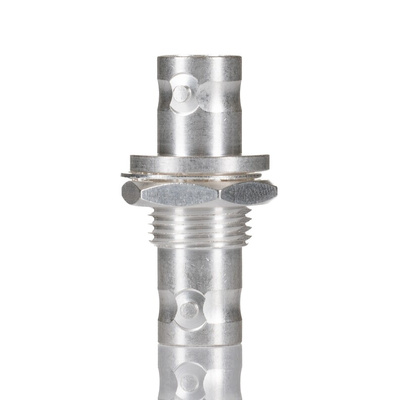

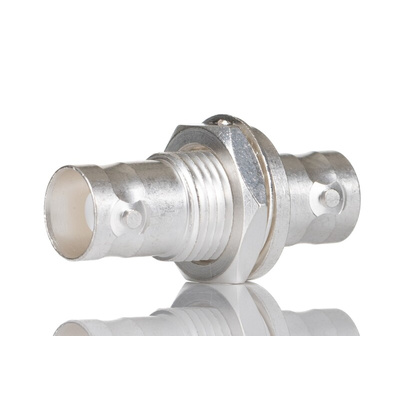

RS PRO Coaxial BNC Adapter, BNC Socket to BNC Socket, 4 GHz

The RS PRO BNC Socket to Socket coaxial adapter is designed for the efficient and secure connection of coaxial cable assemblies through a panel mounting connection.

RS PRO BNC adapters feature a bayonet coupling for easy tool free connection and disconnection and are ideal for applications that require connections to be made and broken repeatedly, protecting the connectors by shifting the force to the adaptor. Other applications can include repairs to devices, panel passthroughs and connection extensions.

The RS PRO coax adapter features PTFE insulation with Silver plated Phosphor Copper contacts for excellent wear resistance and a length of 32.5mm.

Due to the ability to quickly connect or disconnect BNC adapters are ideal for a wide range of applications and are often used in test equipment, antenna connections, CCTV and medical equipment.

Features and benefits

• BNC Socket to BNC Socket


• Straight orientation


• 32.5mm


• Impedance of 50Ω


• Working Voltage of 500V


• Operating temperature range of -40°C to +125°C

Approvals and Standards: CE, ROHS
