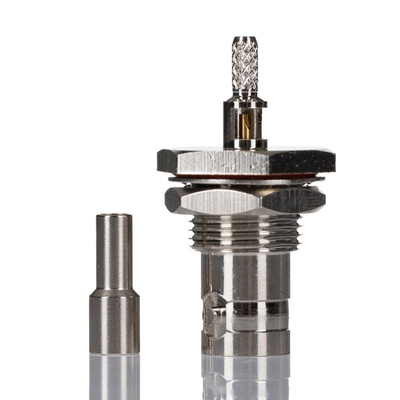

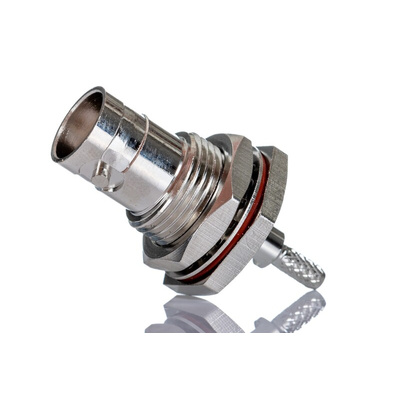

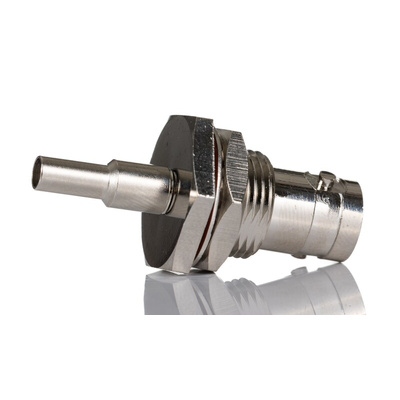

RS PRO, jack Panel Mount BNC Connector, 50Ω, Crimp Termination, Straight Body

RS PRO Straight Angle Panel Mount Bulkhead BNC Connector Jack, RG174/U

A straight angle panel mount BNC bulkhead connector designed for use with RG174/U coaxial cable to enable the smooth transmission of radio-frequency signals (RF). As a BNC connector the RS PRO BNC Connector jack features a quick connect bayonet fitting for easy tool free coax connection and disconnection.

The RS PRO BNC coax connector features a 4 GHz frequency range and includes Teflon insulation and gold-plated Brass contacts for maximum repeated efficiency and excellent wear resistance.

Due to the ability to quickly connect or disconnect from connectors BNC coaxial connectors are ideal for a wide range of RF applications and are often used in test equipment, antenna connections, CCTV and medical equipment.

Features and Benefits

• For use with RG174/U Coaxial cable


• Bulkhead design


• Panel mount


• Crimp termination


• Straight angle orientation


• Working Voltage of 335V


• Insulation resistance of upto 1000MΩ


• Operating temperature range of -45°C to +165°C

Approvals and Standards: CE, ROHS
