RS PRO, Plug Cable Mount BNC Connector, 75Ω, Crimp Termination, Straight Body

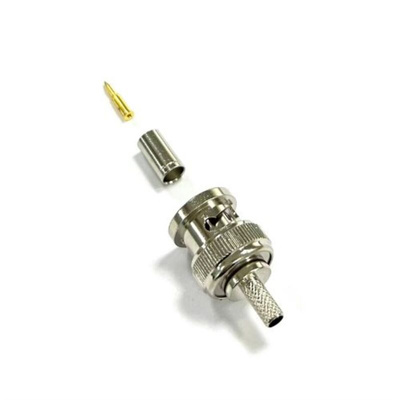

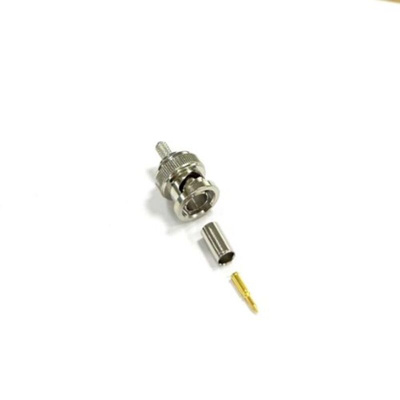

RS PRO Straight Angle Cable Mount BNC Connector Plug

A straight angle panel mount BNC bulkhead connector designed for use with coaxial cable to enable the smooth transmission of radio-frequency signals (RF). As a BNC connector the RS PRO BNC Connector plug features a quick connect bayonet fitting for easy tool free coax connection and disconnection.

The RS PRO BNC coax connector features a 3 GHz frequency range and gold-plated Brass contacts for maximum repeated efficiency and excellent wear resistance.

Due to the ability to quickly connect or disconnect from connectors BNC coaxial connectors are ideal for a wide range of RF applications and are often used in test equipment, antenna connections, CCTV and medical equipment.

Features and Benefits

• Cable mount


• Crimp termination


• Straight orientation


• Working Voltage of 335V


• Insulation resistance of upto 1000MΩ


• Operating temperature range of -45°C to +165°C

Approvals and Standards: CE, ROHS

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
