RS PRO, jack Panel Mount BNC Connector, 50Ω, Solder Termination, Straight Body

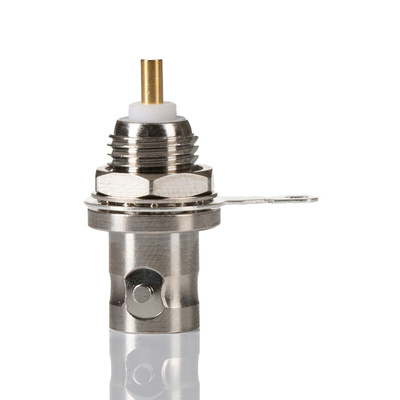

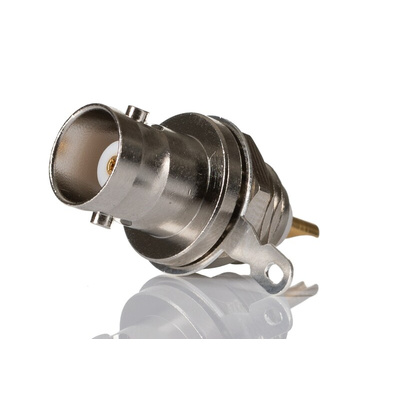

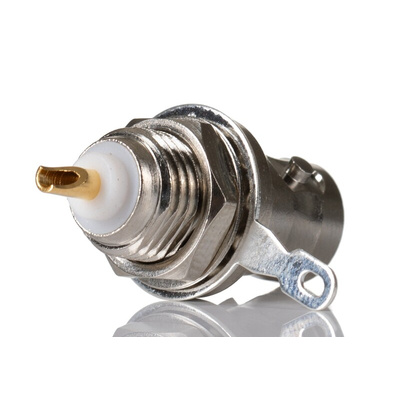

RS PRO Straight Angle Panel Mount Bulkhead BNC Connector Jack

A straight angled panel mount BNC connector designed for use with coaxial cable to enable the smooth transmission of radio-frequency signals (RF).

As a BNC connector the RS PRO BNC Connector jack is designed to attach to the corresponding connector via a quick connect bayonet fitting for easy tool free coax connection and disconnection.

The RS PRO BNC coax connector features a 4 GHz frequency range and includes PTFE insulation and gold-plated Phosphor Copper contacts for maximum repeated efficiency and excellent wear resistance.
Due to the ability to quickly connect or disconnect BNC coaxial connectors are ideal for a wide range of RF applications and are often used in test equipment, antenna connections, CCTV and medical equipment.

Features and Benefits

• Bulkhead connector


• Nickel plated body for rust and wear resistance


• Panel mount


• Solder termination


• Straight angle orientation


• Working Voltage of 500V


• Insulation resistance of upto 1000MΩ


• Operating temperature range of -40°C to +125°C

Approvals and Standards: CE, ROHS
