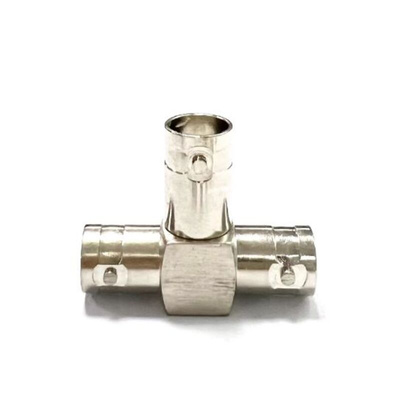

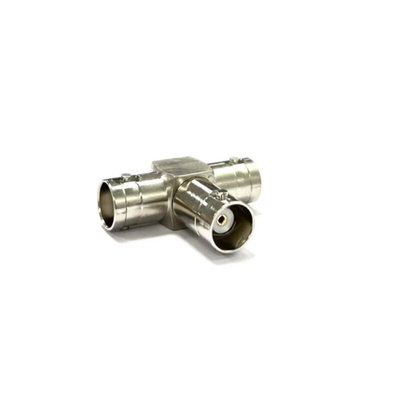

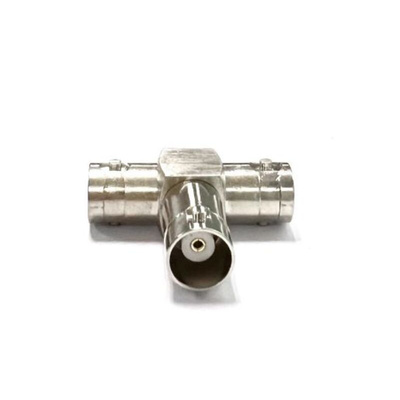

RS PRO Tee 50Ω Coaxial Adapter BNC Socket to BNC Socket 250MHz

RS PRO Tee Angle Coaxial BNC Adapter, BNC Socket to BNC Socket, 250 MHz

The RS PRO BNC Socket to Socket coaxial adapter is designed for the efficient and secure connection of coaxial cable assemblies and feature a bayonet coupling for easy tool free connection and disconnection.

RS PRO BNC adapters are ideal for applications that require connections to be made and broken repeatedly protecting the connectors by shifting the force to the adaptor. Other applications can include repairs to devices, panel passthroughs and connection extensions.

The RS PRO coax adapter features gold-plated Phosphor Copper contacts for excellent wear resistance and a length of 32.6mm.

Due to the ability to quickly connect or disconnect BNC adapters are ideal for a wide range of applications and are often used in test equipment, antenna connections, CCTV and medical equipment.

Features and benefits

• BNC Socket to BNC Socket


• Tee orientation


• 32.6 x 25.8mm


• Impedance of 50Ω


• Working Voltage of 500V


• Operating temperature range of -40°C to +125°C

Approvals and Standards: CE, ROHS

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
