RS PRO, Plug Cable Mount TNC Connector, 50Ω, Crimp Termination, Straight Body

2469477
Производитель: RS PRO
Цена за шт. (норма упаковки 100 шт)
1478.10 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

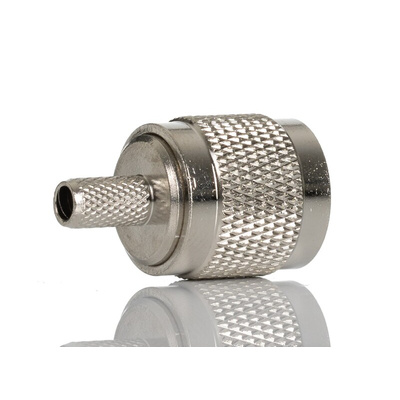

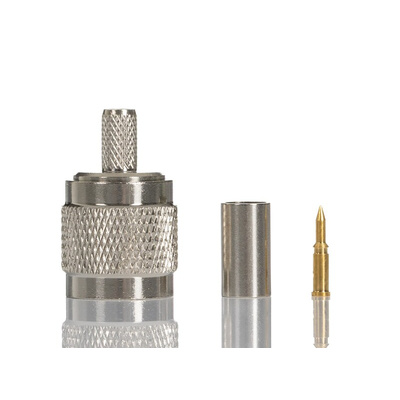

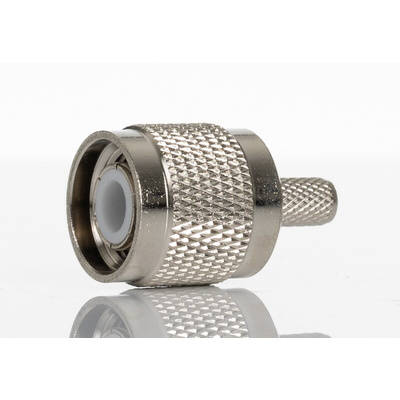

RS PRO Straight Angle Cable Mount TNC Connector Plug, RG58/U

A straight angle cable mount TNC connector designed for use with RG58/U coaxial cable to enable the smooth transmission of radio-frequency signals (RF). As a TNC connector the RS PRO Connector plug features a threaded screw-fit connection for a secure hold and protection against vibration and electromagnetic interference.

The RS PRO TNC coax connector features a 11 GHz frequency range and includes PTFE insulation and gold-plated Copper contacts for maximum repeated efficiency and excellent wear resistance.

Although similar in design to the BNC connector type the TNC coaxial connectors are often used in applications that operate in areas that face vibration where the BNC bayonet connection is not suitable. TNC coax connectors deliver higher performance levels when using Microwave frequencies and are often used in portable radios, radar systems, broadcasting and mobile phone antennas.

Features and Benefits

  • Nickel plated body for rust and wear resistance

  • Cable mount

  • Crimp termination

  • Straight angle orientation

  • Working Voltage of 335V

  • Insulation resistance of upto 1000MΩ

  • Operating temperature range of -45°C to +80°C

Approvals and Standards: CE, ROHS

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Техническая спецификация
pdfRS PRO Datasheet
Импеданс:
50Ом
Кабель - тип:
RG58/U
Концевая заделка:
Crimp
Материал контактов:
Медь
Ориентация корпуса:
Прямой
Покрытие контактов:
Золото
Покрытие корпуса:
Никель
Полярность:
Normal
Рабочая температура - максимальная:
+80°C
Рабочая температура - минимальная:
-45°C
Рабочая частота:
11ГГц
Род:
Male
Серия:
TNC
Тип коаксиального разъема:
TNC Connector
Тип монтажа:
Кабельное крепление
