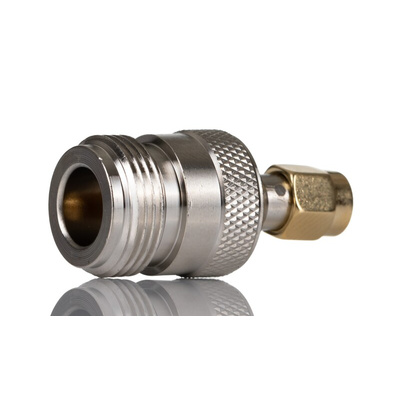

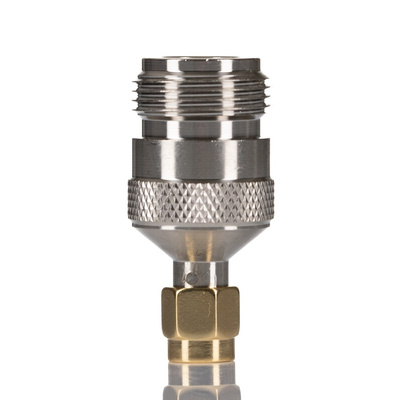

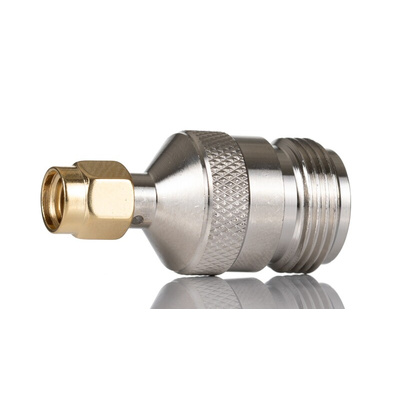

RS PRO Straight 50Ω Coaxial Adapter SMA Plug to N Socket 6GHz

RS PRO Coaxial Adapter, SMA Plug to N Socket, 6 GHz

The RS PRO SMA (sub miniature A) Plug to N Socket coaxial adapter is designed for the efficient and secure connection of coaxial cable assemblies through a panel mounting.

Other applications can include repairs to devices, panel passthroughs and connection extensions.

The RS PRO coax adapter features PTFE insulation with gold-plated Brass contacts for excellent wear resistance and a length of 34.2mm.

Coaxial adapters are suited to a wide range of industries and applications and are most commonly used in the radio and television industry, WiFi applications and equipment, GPS and antennas.

Features and benefits

• SMA Plug to N Socket


• Straight orientation


• 34.2mm


• Impedance of 50Ω


• Insulation resistance of up to 1000MΩ


• Working Voltage of 335V

Approvals and Standards: CE, ROHS
