RS PRO, jack Cable Mount MMCX Connector, 50Ω, Crimp Termination, Right Angle Body

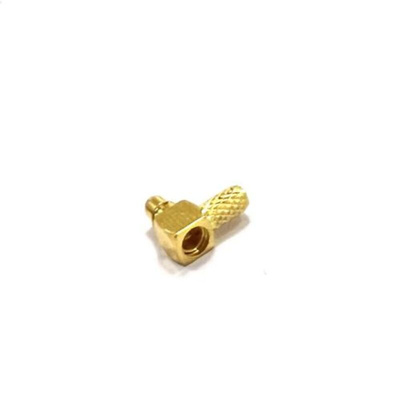

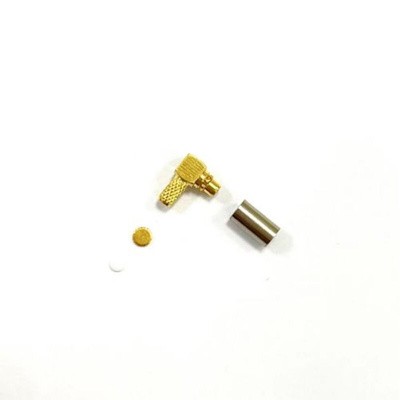

RS PRO Right Angle Cable Mount MMCX Connector Jack, RG174/U

A right angle cable mount MMCX (micro-miniature coxial) connector designed for use with RG174/U coaxial cable to enable the smooth transmission of radio-frequency signals (RF).

As a MMCX connector the RS PRO MMCX Connector jack is similar in design to the MCX connectors but with a considerably smaller footprint and are ideally suited to applications with limited PCB board space. RS PRO MMCX connectors are designed with a snap-on mechanism allowing 360° rotation for quick tool free removal of cables.

MMCX connectors feature low RF leakage are often use in applications including Wireless devices, GPS receivers, telecommunication, WiFi PCMCIA Cards.

The RS PRO MMCX coax connector features a 3 GHz frequency range and includes PTFE insulation and gold-plated Phosphor Copper contacts for maximum repeated efficiency and excellent wear resistance.

Features and Benefits

• For use with RG174/U coax cable


• Right angle orientation


• Cable mount


• Crimp termination


• Working Voltage of 335V


• Insulation resistance of upto 1000MΩ


• Operating temperature range of -45°C to +165°C

Approvals and Standards: CE, ROHS
