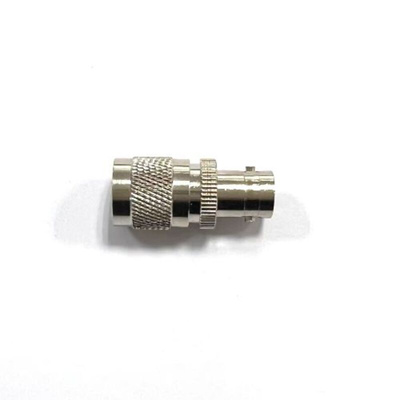

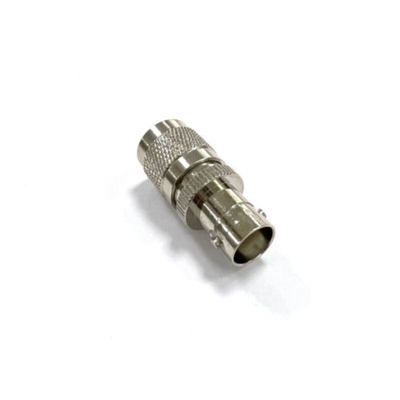

RS PRO Coaxial Adapter, TNC Socket to BNC Socket, 4 GHz

The RS PRO Type N TNC to BNC Socket coaxial adapter is designed for adaptation of BNC and TNC connections enabling the efficient and secure connection of coaxial cable assemblies.

Other applications can include repairs to devices, panel passthroughs and connection extensions.

The RS PRO coax adapter features a 4 GHz operating range, gold-plated Brass contacts for excellent wear resistance and a total length of 31.3mm.

BNC connectors feature a bayonet fitting allowing quick connection or disconnection from devices. BNC coaxial connectors are ideal for a wide range of RF applications and are often used in test equipment, antenna connections, CCTV and medical equipment.

Features and benefits

• TNC Socket to BNC Socket


• Straight orientation


• 31.3mm


• Impedance of 50Ω


• Working Voltage of 500V


• Insulation resistance of up to 1000MΩ


• Operating temperature range of -65°C to +165°C

Approvals and Standards: CE, ROHS
