RS PRO Straight 50Ω Coaxial Adapter SMA Plug to BNC Socket 4GHz

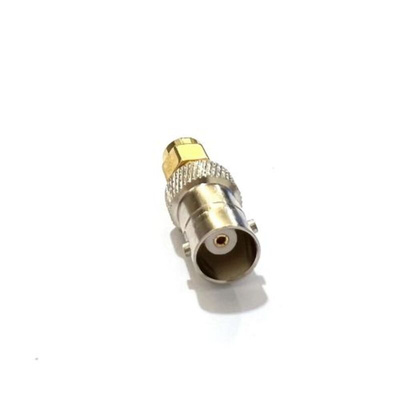

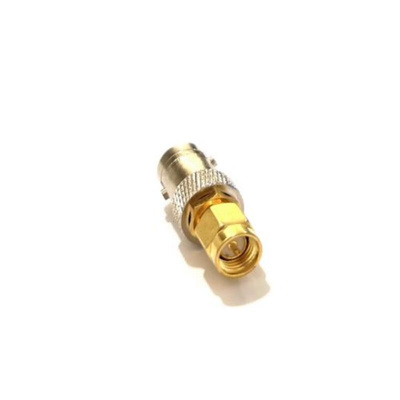

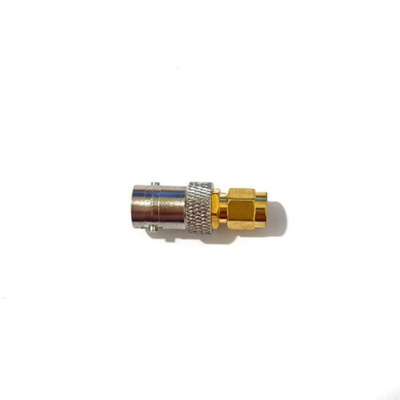

RS PRO Coaxial Adapter, SMA Plug to BNC Jack, 4 GHz

The RS PRO SMA (sub miniature A) Plug to BNC Jack coaxial adapter is designed for adaptation of connections enabling the efficient and secure connection of coaxial cable assemblies.

Other applications can include repairs to devices, panel passthroughs and connection extensions.

The RS PRO coax adapter features PTFE insulation, a 4 GHz operating range, gold-plated Copper contacts for excellent wear resistance and a total length of 28.8mm.

BNC connectors feature a bayonet fitting allowing quick connection or disconnection from devices. BNC coaxial connectors are ideal for a wide range of RF applications and are often used in test equipment, antenna connections, CCTV and medical equipment.

Features and benefits

• SMA Plug to BNC Jack


• Straight orientation


• 28.8mm


• Impedance of 50Ω


• Working Voltage of 500V


• Insulation resistance of up to 1000MΩ


• Operating temperature range of -65°C to +165°C

Approvals and Standards: CE, ROHS
