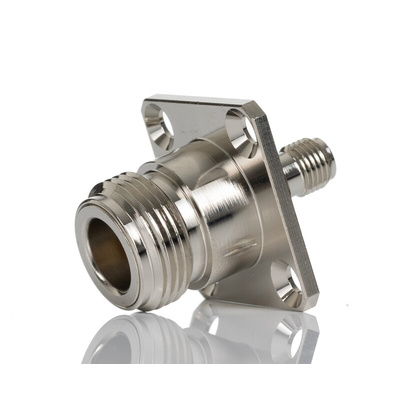

RS PRO Straight 50Ω Coaxial Adapter SMA Socket to N Socket 11GHz

RS PRO Coaxial Adapter, SMA Jack to Type N Jack, 11 GHz

The RS PRO SMA (sub miniature A) Socket to N Socket coaxial adapter is designed for the efficient and secure connection of coaxial cable assemblies in panel installations.

Other applications can include repairs to devices, panel passthroughs and connection extensions.

The RS PRO coax adapter features PTFE insulation, an 11 GHz operating range, gold-plated Brass contacts for excellent wear resistance and a length of 25mm.

N-type connectors feature a larger RF connector and are used in high-power applications. They are often used in radio and television broadcast, base stations and larger antennas, and with the SMA fitting this coaxial adapter is ideal for integrating different devices in laboratory or field applications.

Features and benefits

• SMA Jack to N Jack


• Panel mount


• 25 x 25mm


• Impedance of 50Ω


• Working Voltage of 500V


• Insulation resistance of up to 1000MΩ


• Operating temperature range of -65°C to +165°C

Approvals and Standards: CE, ROHS

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
