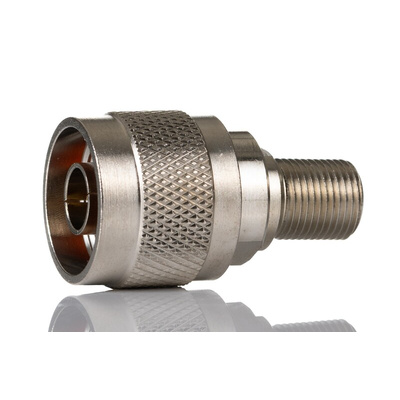

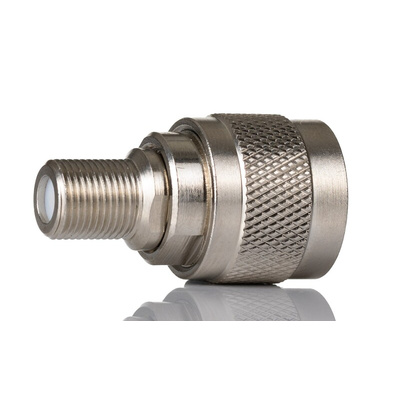

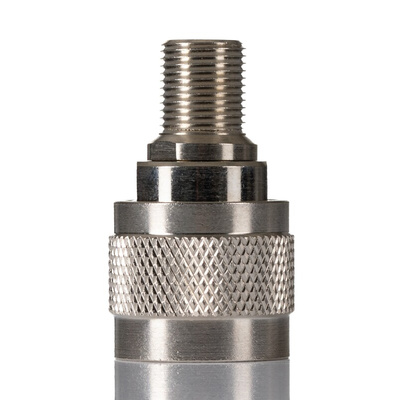

RS PRO Straight 50Ω Coaxial Adapter N Plug to Type F Socket 300MHz

RS PRO Coaxial Adapter, Type N Plug to Type F Socket, 300 MHz

The RS PRO N-Type Plug to F-Type Socket coaxial adapter is designed for adaptation of connections enabling the efficient and secure connection of coaxial cable assemblies.

Other applications can include repairs to devices, panel passthroughs and connection extensions.

The RS PRO coax adapter features a 300 MHz operating range, gold-plated Brass contacts for excellent wear resistance and a total length of 34mm.

Coaxial adapters are suited to a wide range of industries and applications and F-Type connectors are most commonly used in broadcasting equipment, televisions, modems and antennas.

Features and benefits

• N Plug to F Socket


• Straight orientation


• 34mm


• Impedance of 50Ω


• Working Voltage of 500V


• Insulation resistance of up to 1000MΩ


• Operating temperature range of -65°C to +165°C

Approvals and Standards: CE, ROHS
