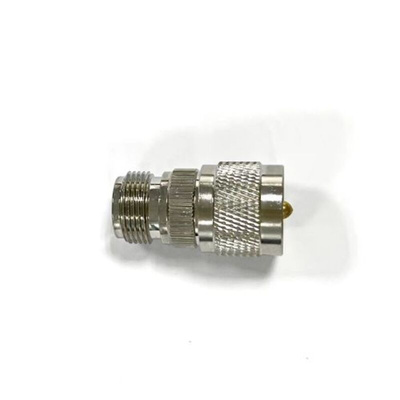

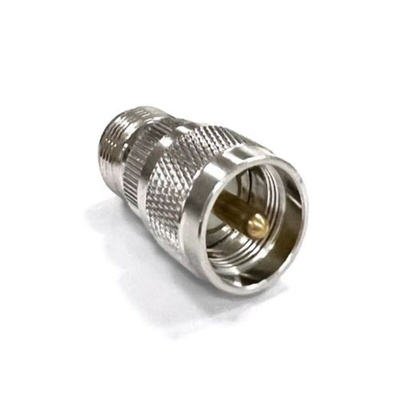

RS PRO Straight 50Ω Coaxial Adapter UHF Plug to N Socket 0.3GHz

RS PRO Coaxial Adapter, UHF Plug to Type N Socket, 300 MHz

The RS PRO UHF Plug to N-Type Socket coaxial adapter is designed for adaptation of connections enabling the efficient and secure connection of coaxial cable assemblies.

Other applications can include repairs to devices, panel passthroughs and connection extensions.

The RS PRO coax adapter features PTFE insulation, a 300 MHz operating range, gold-plated Brass contacts for excellent wear resistance and a length of 37.1mm.

N-type connectors feature a larger RF connector and are used in high-power applications. They are often used in radio and television broadcast, base stations and larger antennas, and with the UHF fitting this coaxial adapter is ideal for integrating different devices in laboratory or field applications.

Features and benefits

• UHF Plug to N Socket


• Straight orientation


• 37.1mm


• Impedance of 50Ω


• Working Voltage of 500V


• Insulation resistance of up to 1000MΩ


• Operating temperature range of -65°C to +165°C

Approvals and Standards: CE, ROHS
