RS PRO, Plug Cable Mount MCX Connector, 50Ω, Crimp Termination, Right Angle Body

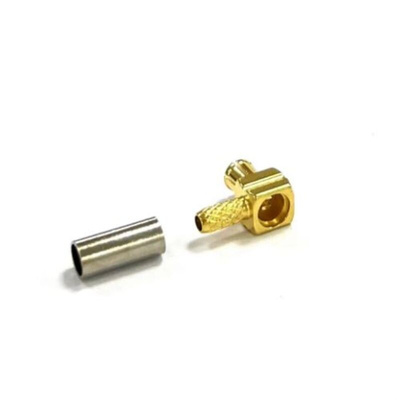

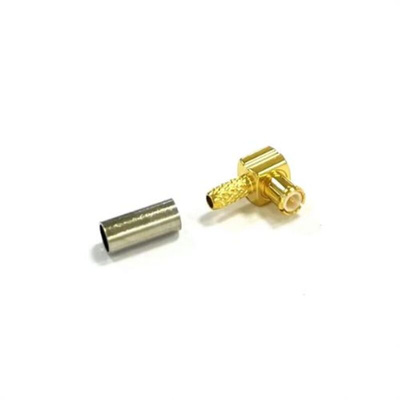

RS PRO Right Angle Cable Mount MCX Connector Plug

A right angle cable mount MXC (micro coaxial) connector designed for use with coaxial cable to enable the smooth transmission of radio-frequency signals (RF).

As a MCX connector the RS PRO MCX Connector plug is a micro connector is suited to applications with limited PCB board space and with the right angle design this MCX connector is ideal for tight spaces and space saving.

RS PRO MCX connectors are designed with a snap-on mechanism allowing 360° rotation for quick tool free removal of cables.

The SMC coax connector features a 6 GHz frequency range and includes PTFE insulation and gold-plated Copper contacts for maximum repeated efficiency and excellent wear resistance.

Features and Benefits

• Right angle orientation


• Cable mount


• Crimp termination


• Working Voltage of 335V


• Insulation resistance of upto 1000MΩ


• Operating temperature range of -45°C to +165°C

Approvals and Standards: CE, ROHS
