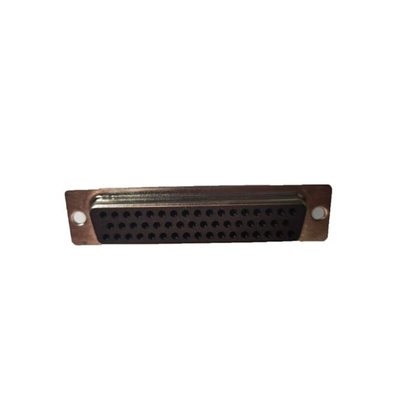

RS PRO 50 Way Panel Mount D-sub Connector Socket, 2.77mm Pitch

2469529
Производитель: RS PRO
Цена за шт. (норма упаковки 5 шт)
1797.90 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

RS PRO 50 Way D-Sub Connector

The RS PRO durable D-Subminiature connector with a hard wearing robust steel shell. These D-sub connectors are ideal for use for making I/O (input/output) interconnections in a wide range of industrial and commercial applications.

What is a D-Sub Connector?

A D-Sub connector is a popular type of I/O (input/output) connects that is commonly used in the computer and datacoms industry to provide power and point-to-point communications between two devices such as a computer and a monitor. The d-sub contains two or more parallel rows of pins or sockets surrounded by a D-shaped metal shell which provides mechanical support and ensures the correct orientation is used when mating. These D-subs are available as female D-sub sockets (or d-sub receptacles) with female contacts or male D-sub plugs with male pin contacts. The socket style female connector mates with the plug style male connector. Please note that a D-sub with a plastic shell cannot be mated with a D-sub with a metal shell.

Features and Benefits

  • Robust design

  • Durable tin plated steel shell

  • Good EMI/RFI protection

  • Flanges with for mounting holes for screw mounting to a panel

Standards and Approvals: CE, ROHS

Applications

This d-sub connector with its robust design and high reliability can be used in communications and network ports in a wide range of industrial and commercial applications. Applications include the following:

  • Computers, monitors and scanners

  • Networking and communications equipment

  • Data processing equipment

  • Industrial equipment

  • Test and measurement instrumentation

  • Remote sensors and data loggers

  • Portable electric generation equipment

How do you mount these connectors?

These D-subs are designed to be panel mounted. A hole is cut in the panel which is determined by the panel cut-out dimensions of the plug or socket. Two mounting flanges either side of the connector incorporate mounting holes. Holes are drilled into the panel to align with these mounting holes. The connector is then inserted into the panel cut-out and secured in place by inserting screws through the holes in both the connector and panel.

Техническая спецификация
pdfRS PRO Datasheet
Кол-во контактов:
50
Концевая заделка:
Припой
Материал контактов:
Латунь
Материал корпуса:
Сталь
Номинал тока:
5.0A
Ориентация корпуса:
Прямой
Покрытие контактов:
Gold Flash, Nickel Plated (Under Plated)
Рабочая температура - максимальная:
+105°C
Рабочая температура - минимальная:
-50°C
Род:
Female
Тип монтажа:
Крепление на панель
Тип разъема D:
Standard D-Sub
Шаг:
2.77мм
