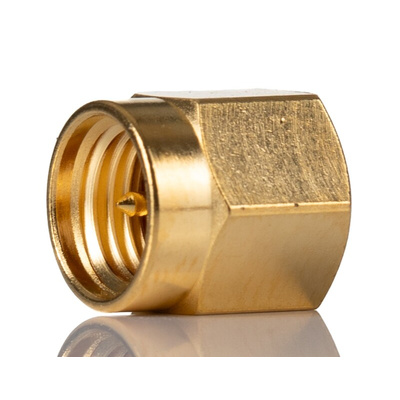

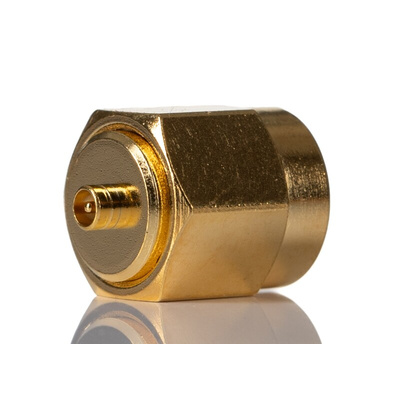

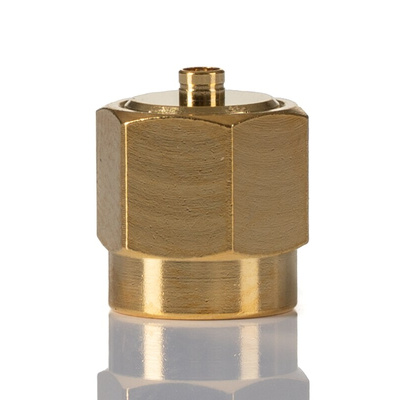

RS PRO Straight 75Ω Coaxial Adapter SMA Plug to UFL Socket 6GHz

RS PRO Coaxial Adapter, SMA Plug to UFL Socket, 6 GHz

The RS PRO SMA (sub miniature A) to UFL Socket coaxial adapter is designed for the efficient and secure connection of coaxial cable assemblies.

Other applications can include repairs to devices, panel passthroughs and connection extensions.

The RS PRO coax adapter features a 6GHz operating range, gold-plated Brass contacts for excellent wear resistance and a total length of only 10mm.

UFL connectors are miniature RF connectors that are very small in size and are most commonly used in applications such as laptops, smart phones where space is extremely limited.

Features and benefits

• SMA Plug to UFL Socket


• Straight orientation


• 10mm


• Impedance of 50Ω


• Working Voltage of 500V


• Insulation resistance of up to 1000MΩ


• Operating temperature range of -65°C to +125°C

Approvals and Standards: CE, ROHS

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
