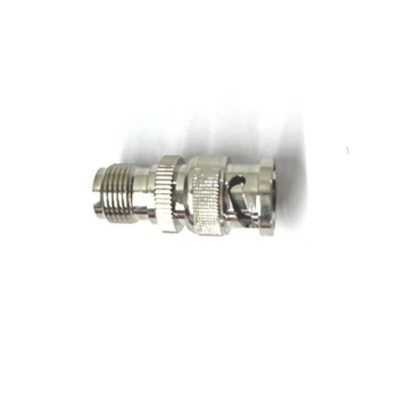

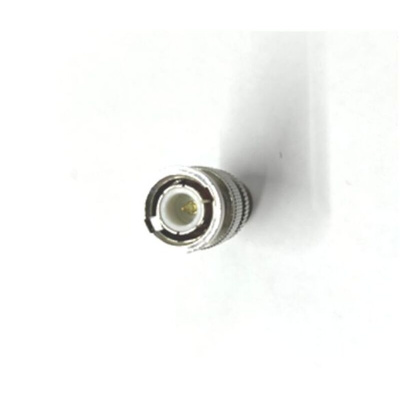

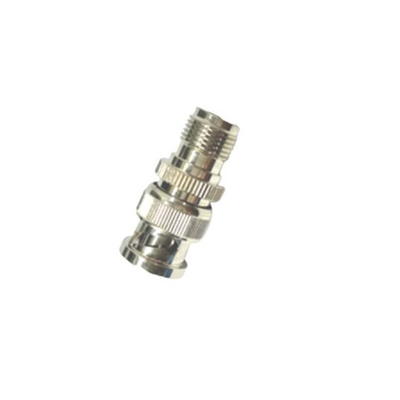

RS PRO Straight 50Ω Coaxial Adapter BNC Plug to TNC Socket 4GHz

RS PRO Coaxial Adapter, BNC Plug to TNC Socket, 4 GHz

The RS PRO BNC Plug to TNC Socket coaxial adapter is designed for the efficient and secure connection of coaxial cable assemblies.

Other applications can include repairs to devices, panel passthroughs and connection extensions.

The RS PRO coax adapter features a 4GHz operating range, Nickel-plated Brass contacts for excellent wear resistance and a total length of 31.5mm.

Although similar in design to the BNC connector type the TNC coaxial adapters feature a screw thread and are used in applications that operate in areas that face vibration and require a secure connection.

Features and benefits

• BNC Plug to TNC Socket


• Straight orientation


• Panel mount


• 31.5mm


• Impedance of 50Ω


• Working Voltage of 500V


• Insulation resistance of up to 1000MΩ


• Operating temperature range of -65°C to +125°C

Approvals and Standards: CE, ROHS
