MIKROE-4883, MikroElektronika DC Motor 19 Click DC Motor Driver for TC78H653FTG for MikroBUS

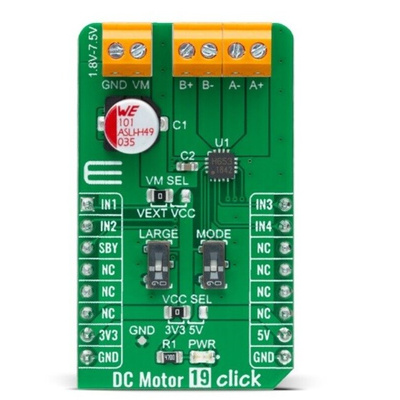

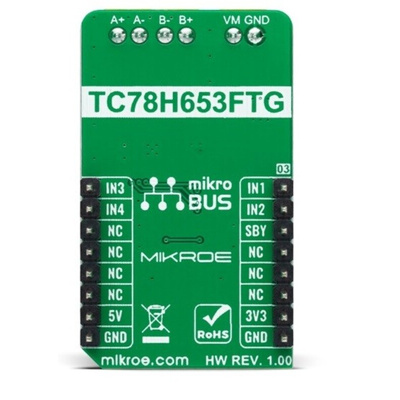

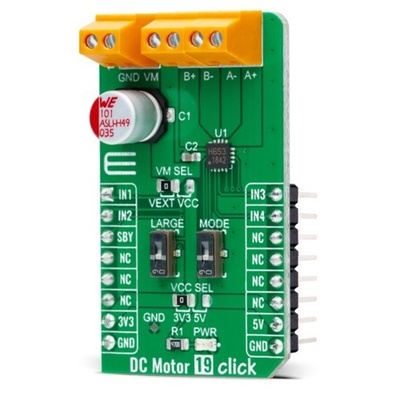

The MikroElektronika the DC Motor 19 Click is a compact add-on board that contains a brushed DC motor driver. This board features the TC78H653FTG, a dual H-bridge driver for one or two DC brushed motors or one stepping motor, which incorporates DMOS with low ON resistance in output transistors from Toshiba Semiconductor. The Forward/Reverse/Brake/Stop mode can be selected according to the state of its input control signals, while the motor operation and current mode can be chosen through on-board switches alongside control signals. It has a wide operating voltage range of 1.8V to 7.5V with an output current capacity of 4A (DC). Besides, it also features built-in protection against under-voltage, overcurrent, and over temperature conditions. This Click board is suitable for driving DC brushed motors and stepping motors for low voltage equipment such as home electronic products and devices using a 5V USB power supply.

Low power consumption
Dual bridge driver
High drive capability
Low voltage drive
Low-on resistance
Selectable motor operation
Built-in Standby and protection features

Datasheet - MIKROE-4883
