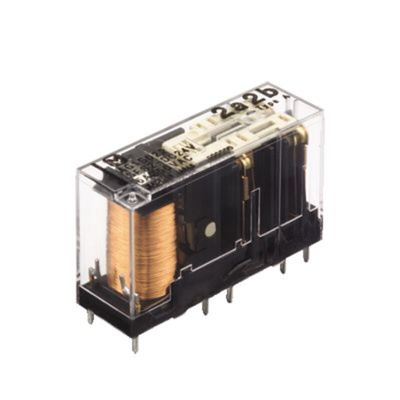

SFS2-DC24V, Panasonic Force Guided Relay

SFS Series

These slim, compact, PCB mount safety relays have forcibly guided contacts and are available with built in LED indication and or diodes. Typical applications for these PCB safety relays include machine tools, robots, safety PLCs, circuits stringent safety standard requirements such as those,in motor vehicle production equipment.

Nominal Switching Capacity 6A at 250Vac
Maximum switching power 180W
Nominal operating power 360mW (4 pole) 500mW (6 pole)
Slim profile
Fast response time, 8 ms or less
High shock resistance, functional: Min 200m/s²
Forcibly guided contact structure

Note

For relay 699-7014, see suitable socket stock nos. 699-7026 and 699-7020,and for relays with contact configuration 3PST-NO; 3PST-NC see suitable socket stock nos.699-7051 and 699-7054

Approvals

TUV

The Panasonic makes SF series of Safety relays, This slim type relay has 2 form A and 2 form B contact arrangement. The relay has no indicator LED, the rated coil voltage is 24 Vdc.

Fast response time is achieved (max. 8 ms )
With diode and LED indication type available

Datasheet - SFS2-DC24V
