Broadcom AFBR-POL2120 Laser Module, 808nm 2000mW, Continuous Wave Line pattern

808 nm High Power 2W Laser Module

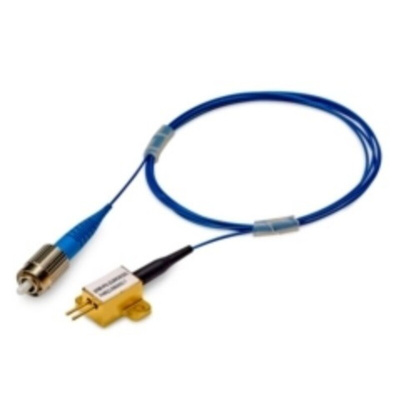

The AFBR-POL2120 is a high power laser module product (HPLM) specifically designed to be used with the Broadcom optical power converter, AFBR-POC20xL. The AFBR-POL2120 is equipped with a pigtail fiber and an optical connector, FC/PC. It consists of a laser chip, operating typically at 808 nm wavelength at a case temperature of 25 °C. The hermetically sealed package protects the laser chip from any harsh environment. The whole optical design is optimized to efficiently couple to external OM1 fiber (MM fiber with 62.5 μm core diameter) as well as other, larger core diameter MM fibers for power transmission.

Features

•RoHS-compliant
•Small footprint board mounting package
•Average power output of 2W over operating temperature range
•Operating temperature range of +15 °C to +45 °C at case
•FC/PC port for MM fibers such as OM1 (62.5 μm core diameter) as well as 105μm and 200 μm
•2 electrical pins (anode and cathode)
•Designed for Broadcom’s optical power converter products for Power over Fiber (PoF) applications

Applications

•Sensor applications: Provide isolated power for various sensors
•Electric Power Utilities: Deliver isolated power to protect sensor devices
•Lightning: Protection of key circuits
•RF Power electronics circuits: Reduction of capacitive coupling and interference
•Oil & Gas Industry: Eliminate the risk of sparks
•Chemical Plants: Use power over fiber in corrosive areas where metal wires can be attacked
•Aerospace: Reduce weight, EMI and the risk of sparks
•Medical instrumentation: Magnetic Resonance Imaging (MRI)
•Security: Trigger and power sources unaffected by EMI-RFI
