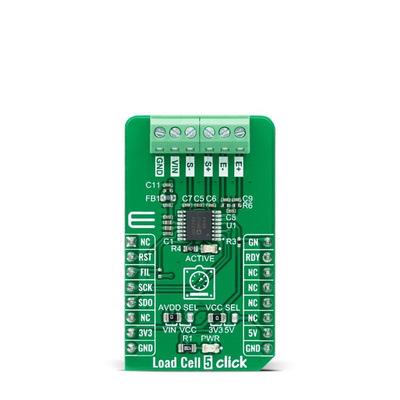

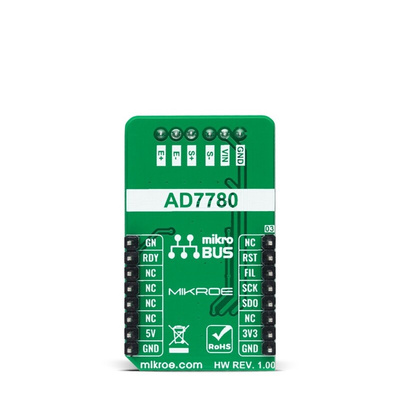

MIKROE-4510, MikroElektronika Load Cell 5 Click Pressure Sensor Add On Board for AD7780 mikroBUS socket

The MikroElektronika Load Cell 5 Click is a compact add on board that represents a weigh scale solution. This board features the AD7780, a pin programmable, low power, 24 bit sigma delta ADC from Analog Devices. It interfaces directly to the load cell, where the low level signal from the load cell is amplified by the AD7780’s internal low noise programmable gain amplifier programmed to operate with a gain of 128 or 1. It also has a power down mode allowing the user to switch off the power to the bridge sensor and power down the AD7780 when not converting, increasing the product battery life. This Click board has many features that make it a perfect solution for safety critical and weight measurement applications.

Low power consumption
Pin programmable filter response
Pin programmable reset and gain
Internal bridge power down switch
Independent interface power supply

Datasheet - MIKROE-4510
