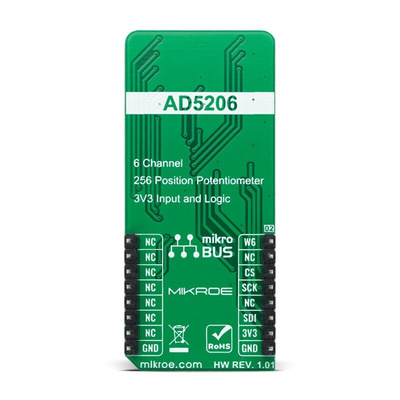

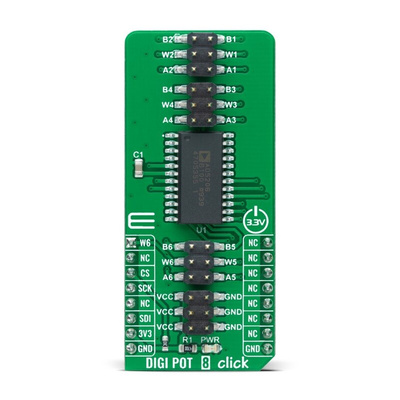

MIKROE-4596, MikroElektronika DIGI POT 8 Click for AD5206 for mikroBUS socket

The MikroElektronika DIGI POT 8 Click is a compact add on board used as a digitally controlled potentiometer. This board features the AD5206, 6 channel 256 position digitally controlled variable resistor device from Analog Devices. Each channel of the AD5206 contains a fixed resistor with a wiper contact that taps the fixed resistor value of 100 kΩ at a point determined by a digital code loaded into the SPI compatible serial input register. This Click board can be used as mechanical potentiometer replacements, voltage to current conversions, gain and offset adjustment, and many other applications.

256 positions
6 independently programmable channels
Potentiometer replacement
Terminal resistance of 100kΩ
SPI compatible

Datasheet - MIKROE-4596
