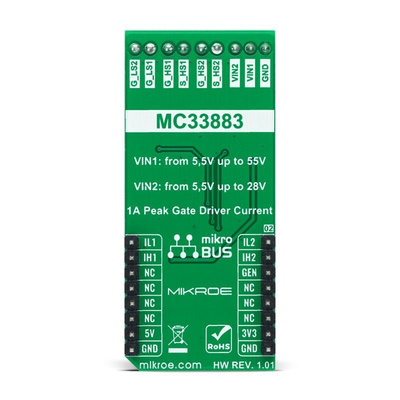

MIKROE-4696, MikroElektronika H-Bridge Driver Click Half-Bridge Driver for MC33883 for mikroBUS socket

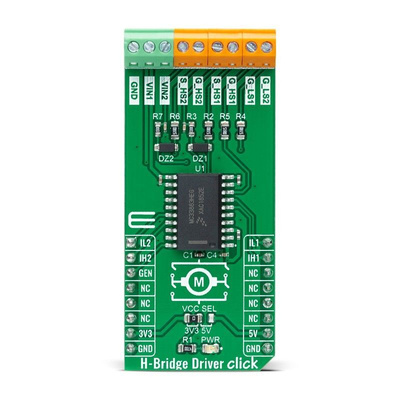

The The MikroElektronika's H-Bridge Driver Click is a compact add-on board that contains an H-bridge gate driver, also known as a full-bridge pre-driver. This board features the MC33883, an H-Bridge gate driver with an integrated charge pump and independent high and low side gate drive channels from NXP Semiconductors. The gate driver channels are independently controlled by four separate input pins, allowing the device to be optionally configured as two independent high side gate drivers and two independent low side gate drivers. Gate driver outputs can source and sink up to 1.0A peak current pulses, permitting large gate-charge MOSFETs to be driven and/or high pulse width modulation PWM frequencies to be utilized. This Click board is suitable for automotive engine applications, energy storage systems ESS, uninterruptible power supply UPS and more.

Full-bridge pre-driver
Built-in high side charge pump
UVLO and OVLO features
Sleep mode
PWM up to 100kHz

Datasheet - MIKROE-4696
