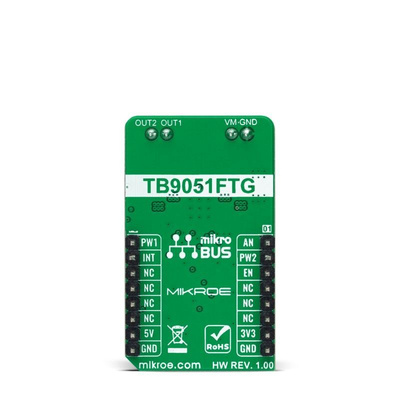

The The MikroElektronika's DC Motor 18 Click is a compact add on board that contains a brushed DC motor driver. This board features the TB9051FTG, an automotive PWM type single channel H Bridge DC brushed motor driver from Toshiba Semiconductor. The Forward, Reverse, Brake mode can be selected according to PWM control signals, while the motor operation and stop mode can be chosen by an enable pin. It has a wide operating voltage range of 4.5V to 28V with an output current capacity of 5A max. Besides, it also features built in protection against under voltage, overcurrent, and over temperature conditions. This Click board is suitable for various automotive applications such as throttle and valve control, various engine bulbs, storing of door mirrors, and seat positioning.
Key Features Low power consumption
Ultra low on resistance
Anomaly detection features
Selectable motor operation
PWM control
High side current monitoring
Diagnosis indicator
Datasheet - MIKROE-4786| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
