MIKROE-4821, MikroElektronika H-Bridge 9 Click Half-Bridge Driver for L99UDL01 for mikroBUS socket

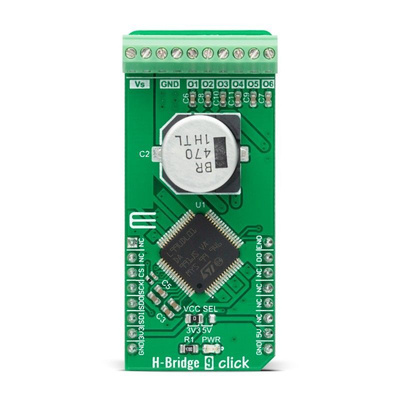

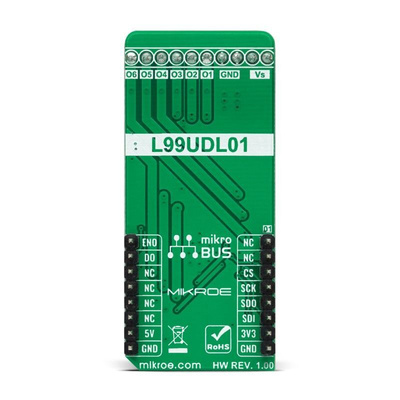

The The MikroElektronika's H-Bridge 9 Click is a compact add on board that contains six MOSFET half bridge outputs. This board features the L99UDL01, a six channel half bridge driver monolithic integrated circuit that is PWM configurable and current regulated from STMicroelectronics. It achieves excellent load and line regulation over a wide input supply range up to 18V. These six integrated MOSFET H bridges are commanded entirely by the SPI interface using duration and current level commands. Complete protection features include open load, short to battery and ground, and load integrity via 10-bit current feedback. This Click board is suitable as a multiple brushed DC motor driver for various applications.

Six integrated fully protected half bridges
Several operational modes
Low power consumption
High level of programming
High level diagnostics
Protection features

Datasheet - MIKROE-4821
