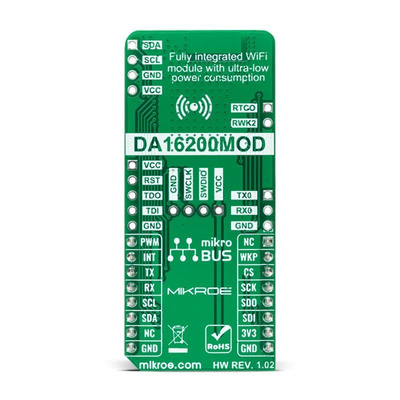

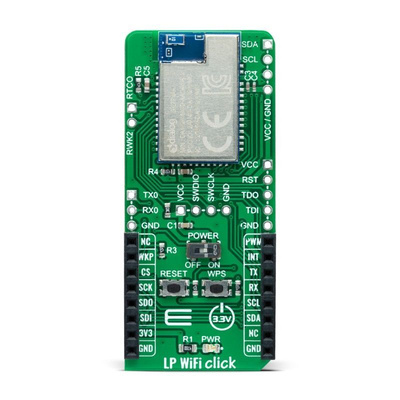

MikroElektronika LP WiFi Click DA16200 Add On Board for mikroBUS socket 2.4GHz MIKROE-4836

The The MikroElektronika's LP WiFi Click is a compact add on board that represents an ultra low power WiFi solution. This board features the DA16200, a fully integrated WiFi module with ultra low power consumption, best RF performance, and a comfortable development environment from Dialog Semiconductor. In addition to the highly integrated ultra low power WiFi SoC, which is the basis of this module, it also includes a 40MHz crystal oscillator, 32.768kHz RTC clock, 4Mbyte flash memory, and chip antenna. Such low power operation can extend the battery life as long as a year or more, depending on the application. This Click board is suitable for highly integrated and cost effective IoT applications such as security systems, door locks, pet and asset trackers, sprinkler systems, connected lighting, wearables, and other IoT devices.

Ultra low power consumption, best RF performance, full offload
Integrated chip antenna
Various interfaces
WiFi alliance certifications
Advanced security
Battery life extension

Datasheet - MIKROE-4836
