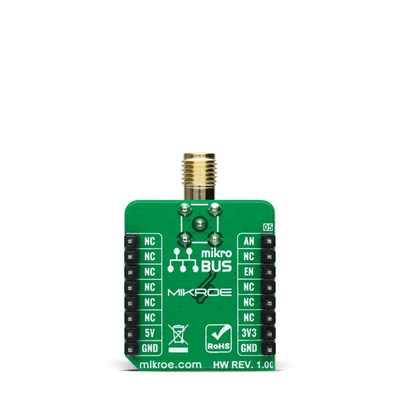

MIKROE-4906, MikroElektronika RF Meter 3 Click Sensor Add-On Board Add On Board for LT5581 mikroBUS socket

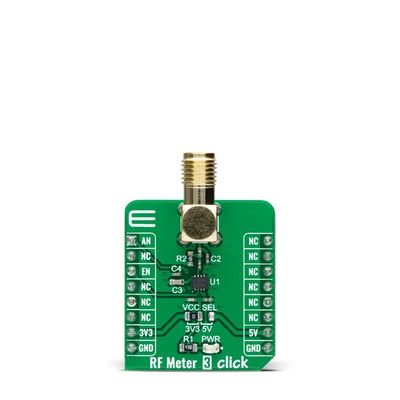

The The MikroElektronika's RF Meter 3 Click is a compact add on board that collects information, analyses RF power, and displays information in an easy to read digital format. This board features the LT5581, a low power monolithic precision RMS power detector from Analog Devices. The RMS detector uses a proprietary technique to accurately measure the RF power in a range from 2GHz up to 2.6GHz, well suited for signals with high crest factors. It outputs a DC voltage in linear scale proportional to an RF input signal power in dBm. This Click board is suitable for precision power measurement and control for various RF standards including GSM or EDGE, CDMA, CDMA2000, W-CDMA, TD-SCDMA, UMTS, LTE, and WiMAX.

Accurate power measurement of high crest factor waveforms
40dB log linear dynamic range
Exceptional accuracy over temperature
Low power consumption
Log linear DC output vs input RF power in dBm

Datasheet - MIKROE-4906
