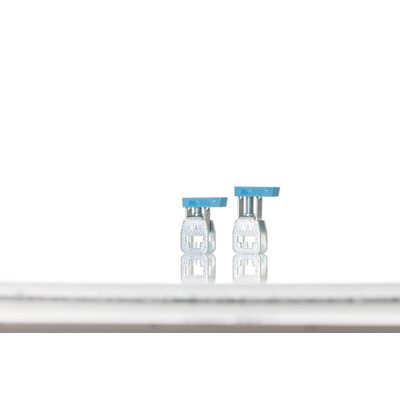

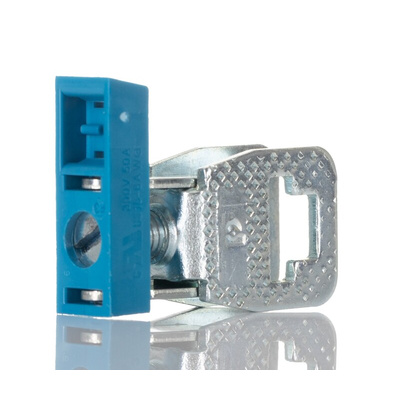

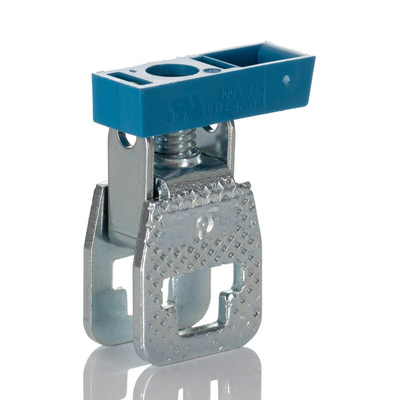

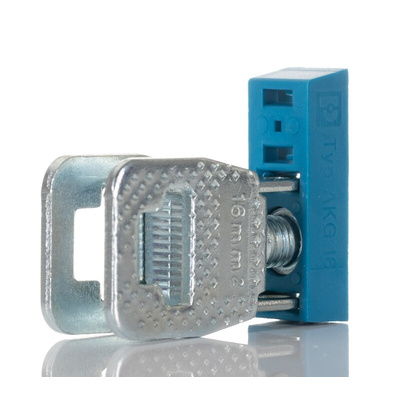

0423014, Phoenix Contact AKG Series Terminal Block, 76A, 14 → 6 AWG Wire, Screw Termination

Phoenix Contact Terminal Block, M5 Screw Thread, 16mm Stripping Length - AKG 16 BU - 0423014

Want an ordered wiring setup for your automation system? Add this terminal block from Phoenix Contact to your electrical infrastructure to have termination done in a flash. The unit mounts onto a neutral busbar and you simply feed your wire through and secure it by tightening the screw on top. As the terminal is rigorously tested for strain associated with bending and flexing, you can be sure of reliable long-term performance, even in demanding conditions.
You're kept out of harm's way, thanks to polyamide insulation that covers the assembly and stops electrical jumps. Maintenance is aided by this unit's blue colour, which makes it easy to spot. A single-row design measuring 23.4 (H) x 9.8 (W) x 32mm (D) means it slots neatly into a busy enclosure.

Features & Benefits

• 76A current rating makes it ideal for use in high-power applications
• Accommodates wire sizes between 1.5 and 16mm² for wide compatibility
• UL 94-V2 rating ensures it self-extinguishes within one minute to stop the spread of fire
• Ruggedly built to handle temperatures from -60°C to +105°C

Datasheet - 0423014

Line Drawing - 0423014
