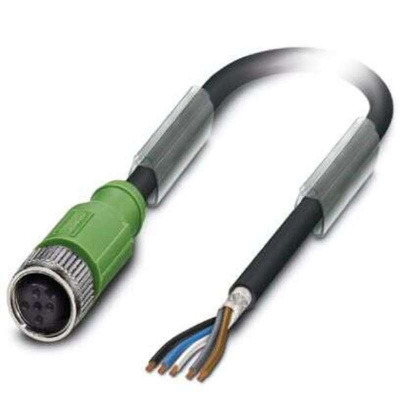

1682935, Phoenix Contact Straight Female M12 to M12 Sensor Actuator Cable, 1.5m

The Phoenix Contact sensor/actuator cable has five positions with socket straight M12 connection. It is 1.5 m long with 50 mm stripping length of the free conductor end.

Conductor cross section 5 x 0.34 mm² (Signal line)
AWG signal line 22
Conductor structure signal line 42 x 0.10 mm
Core diameter including insulation 1.27 mm ±0.02 mm (Signal line)
Thickness, insulation ≥ 0.21 mm
Wire Colors brown, white, blue, black, grey
Overall twist 5 wires around filler to the core
Shielding tinned copper braided shield
Optical shield covering 80 %

Datasheet - 1682935
