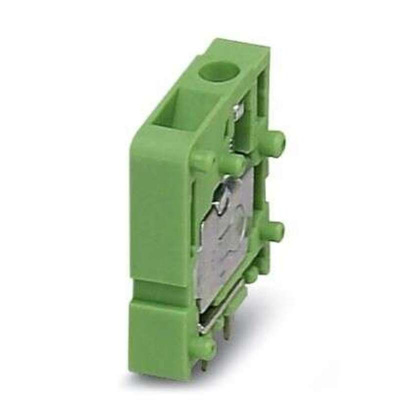

1701162, Phoenix Contact PCB Terminal Block, 1-Contact, 5mm Pitch, PCB Mount, 1-Row

The Phoenix Contact PCB terminal block has nominal current of 21 A and nominal cross section of 2.5 mm². Two solder pins reduce the mechanical strain on the soldering spots. The latching on the side enables various numbers of positions to be combined.

Screw thread M2,5
Mounting type wave soldering
Pin layout linear double pinning
Number of rows 1
Number of connections 1
Number of potentials 1
Nominal voltage 176 V
Rated current 21 A
Contact resistance Test passed IEC 60512-2-1:2002-02
Rated voltage (III/3) 176 V
Connection method front screw connection

Datasheet - 1701162
