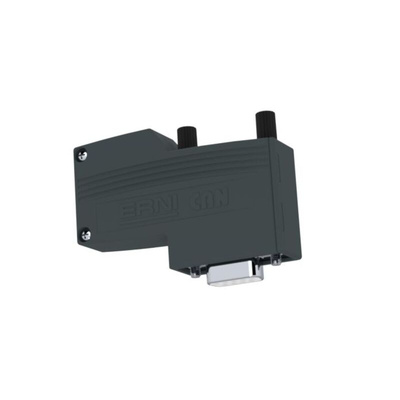

103642 / 103642-E, ERNI 9 Way Cable Mount D-sub Connector Socket, Разъем

ERNI

The ERNI CAN Bus with shield decoupling capacitor originally developed for automobile engine management, is distinguished by its particularly high reliability. Among other things, this necessitates a more complicated protocol, which leads to lower data rates and cable lengths. This can be compensated for in part by larger cable cross sections. Data rates reach 1 Mbit/s. The 9-pin D-Sub connector is standardized as the interface to the device. In some cases, a version with a shield coupling capacitor is available as an option (cable shield housing D-Sub).

D-Sub, 9-pin female connector
Screw termination type
Horizontal cable outlet
Permissible humidity is Max. 75 % at +25 °C, non-condensing
Anthracit color
