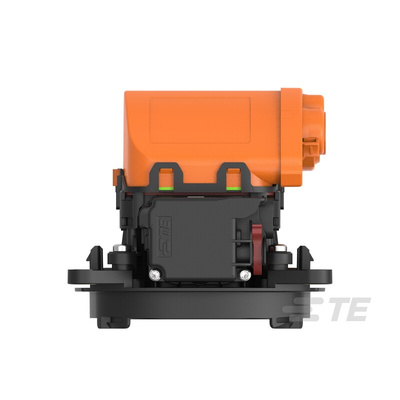

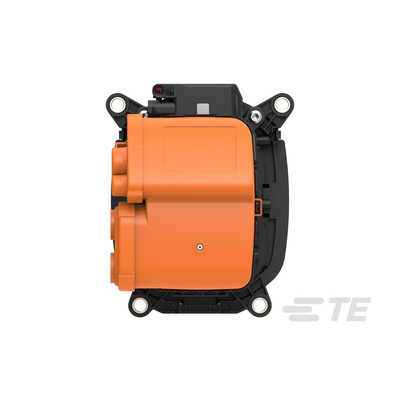

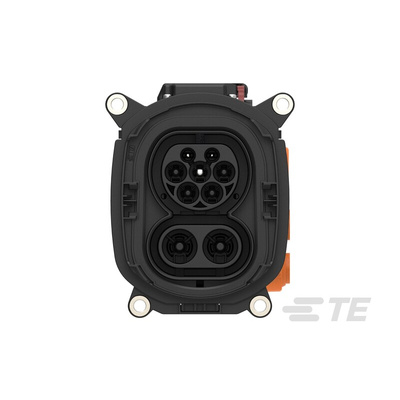

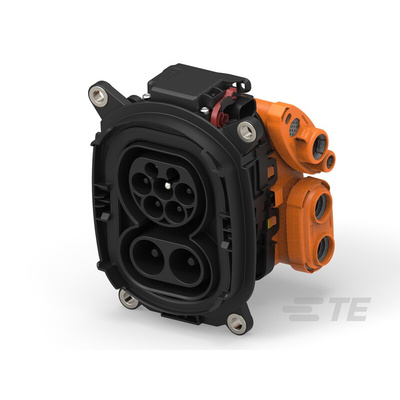

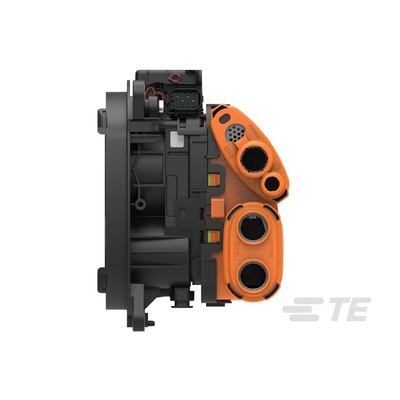

2375502-2, TE Connectivity, CCS2 Charging Inlet Socket, 32A 250 V ac, 1000 V dc

TE Connectivity's ICT Charging Inlets are designed for electric vehicles (EVs) and plug-in hybrid electric vehicles (PHEVs). They enable safe and fast charging of commercial and industrial electric vehicles such as buses and trucks. Robust in design they can withstand harsh weather conditions and frequent use, making the inlets suitable for a wide range of heavy duty EV charging applications.

Key Features

• CCS Type 2 connector


• Right cable exit direction


• Capable of 10,000 mating cycles while charging at 32A ac and 250A dc


• Wide operating temp range -40°C to +85°C


• Integrated PT100 temperature sensor


• IP67


• UL94-V0 fire classification

Key Benefits

• Faster charging times, thanks to the inlets' high power capacity and compatibility with fast-charging protocols.


• Improved safety, with features such as built-in temperature sensors and automatic shut-off mechanisms that help prevent overcharging and overheating.


• Simple installation and maintenance, with a modular design that makes it easy to replace individual components as needed.

Datasheet - 2375502-2

Drawing
