onsemi ECLSOIC8EVB, SOIC-8 High-Frequency Devices Evaluation Board Evaluation Board for MC10EL01D/MC100EL01D

The ON Semiconductor has developed an evaluation board for the devices in 8−lead SOIC package. These evaluation boards are offered as a convenience for the customers
interested in performing their own engineering assessment on the general performance of the 8−lead SOIC device samples. The board provides a high bandwidth 50

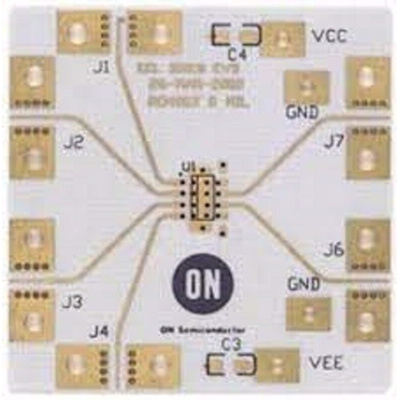

controlled impedance environment. The pictures in Figure 1 show the top and bottom view of the evaluation board, which can be configured in several different ways, depending on device under test (See Table 1. Configuration List).

Maximum power supply 5 V

Instruction sheet - ECLSOIC8EVB
