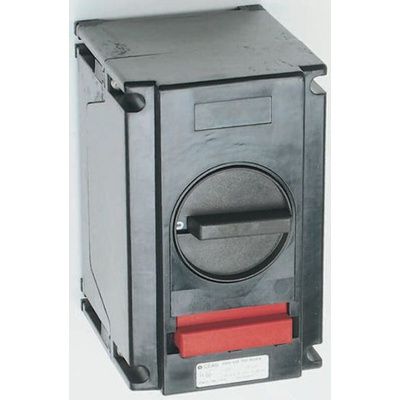

GHG6351101R0108, Eaton DOL Starter, DOL, 690 V ac, IP66, Пускатель

Motor Starter

Single-phase failure via thermal electromagnetic trips are featured in these circuit breakers/manual motor starters. The respective switch position is clearly indicated by the switch handle. Terminals are protected against accidental contact. They have a terminal cross section of up to 10mm² for the connection of single or multi-wire conductors. The external contours of the enclosure allow easy access to the connection terminals and easy installation.

Connection terminals accessible from all sides
IP66 to EN60529 rating
Isolating properties to DIN EN 60947-3
690Vac upto 25A rating
Single phase failure protection
Padlocking facility via red button
Clear indication of switch position
268mm x 140mm x 150mm (H/W/D)

Note

Short-circuit protection up to 100kA and maximum back-up see 'key characteristics' table

Group and Category

II 2 G EEx de II C T S or T6

Certificate No.

PTB 99 ATEX 1162

Note

Eaton formerly known as CEAG

PTB 99ATEX1162
