31-041.006, EAO Latching White LED Push Button Switch, IP40, 18 x 24mm, PCB, Кнопочный переключатель

Indicator - EAO 31 Series

The EAO 31 series of indicators are suitable for use in many Human Machine Interface (HMI) panel mounting applications including Process Control, Panel Building, Machinery and Instrumentation. Illumination for the EAO 31 series indicator is via a T1 midget groove filament lamp or single chip LED with a supply voltage of between 6 and 48V. For supply voltages above 48V, it is necessary to use an external series resistor.

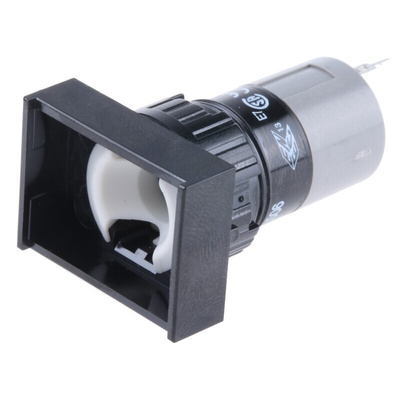

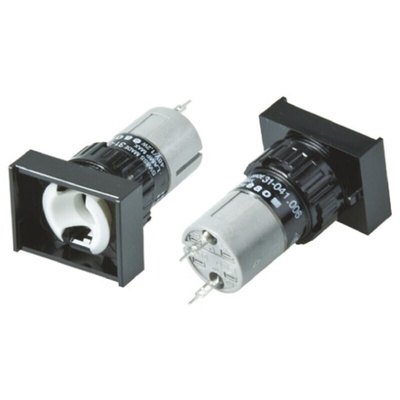

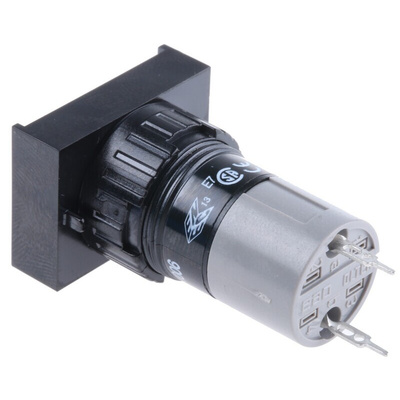

The EAO 31 series indicators are available in a choice of square or rectangular bezels. The square indicator (stock number 248-5368) has a 18x18mm bezel while the rectangular indicator (stock number 248-5295) has a 18x24mm bezel. Both versions require a 16mm panel cut out and are suitable for panels with a thickness of between 1.5 and 6mm, the indicators overall depth behind the panel is only 36mm.

Universal terminals allow either direct soldering or PCB mounting
Self-extinguishing (Polyetherimide) actuator housing material
Raised button profile

Note

To make a complete indicator you will need the indicator, a lens and a filament lamp or LED.
For the EAO 31 series of push button switches see stock number 749-2605 typically.
For the EAO 31 series of lenses see stock numbers 248-5425 or 248-5374 typically.
For the EAO 31 series tool kit see stock number 248-5481.
For a suitable filament lamp see stock number 655-9211 typically.
For a suitable white single chip LED see stock number 225-997 typically.

Series 31 Switches and Indicators Data Sheet

EAO - Series 31 - HMI Human Machine Interface Data Sheet
